Components And Components Location: Components

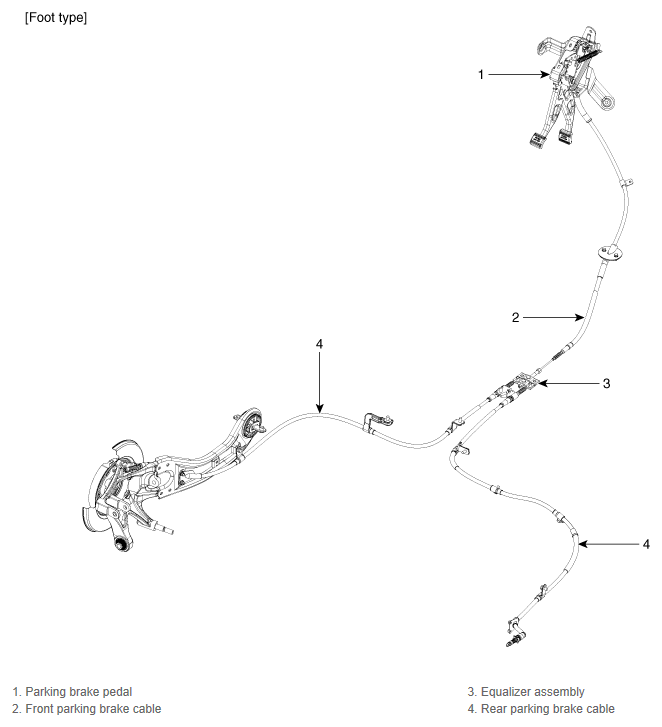

Fig 1: Parking Brake Assembly Components Location (1 Of 2)
G12294480Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Parking Brake Assembly Components Location (2 Of 2)
G12294481Courtesy of KIA MOTORS AMERICA, INC.
