System Block Diagram

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

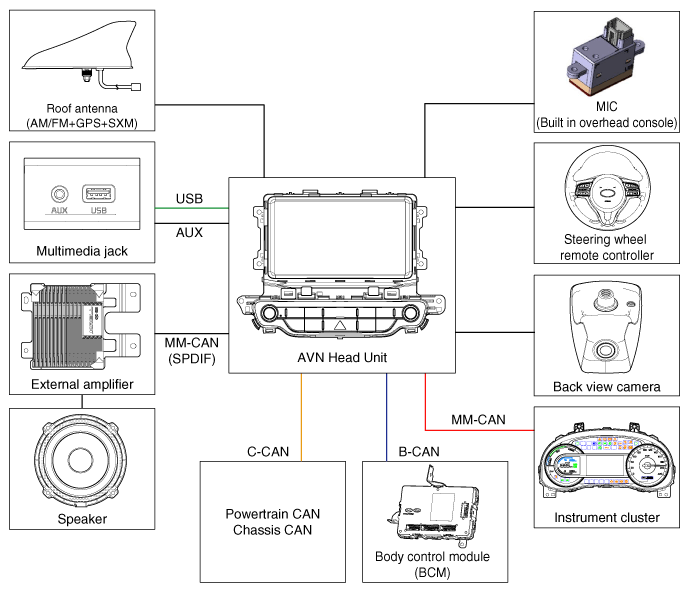

Fig 1: AVN System Block Diagram
G12332244Courtesy of KIA MOTORS AMERICA, INC.
