Vehicle S/W Management

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS/GDS.
 Figures 1 - 2 below
Figures 3 - 5 below

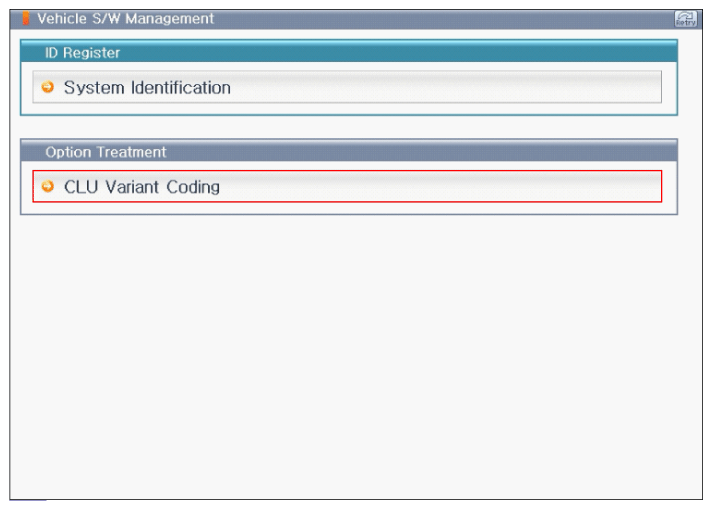

Fig 1: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line) (1 Of 2)
G12320642Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line) (2 Of 2)
G12320643Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 1 Of 3)
G12320644Courtesy of KIA MOTORS AMERICA, INC.

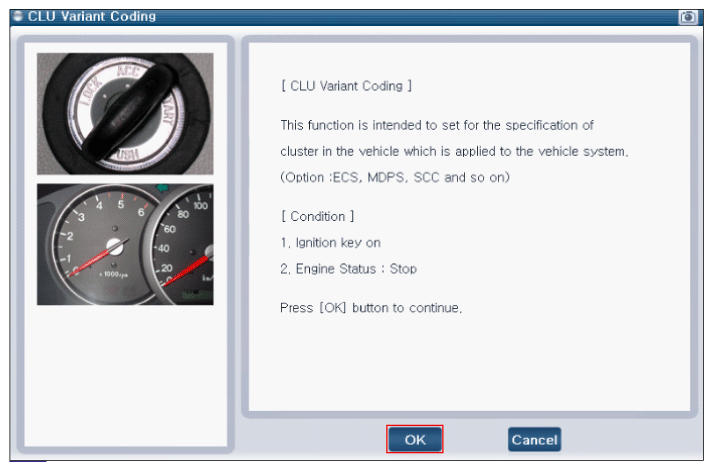

Fig 4: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 2 Of 3)
G12320645Courtesy of KIA MOTORS AMERICA, INC.

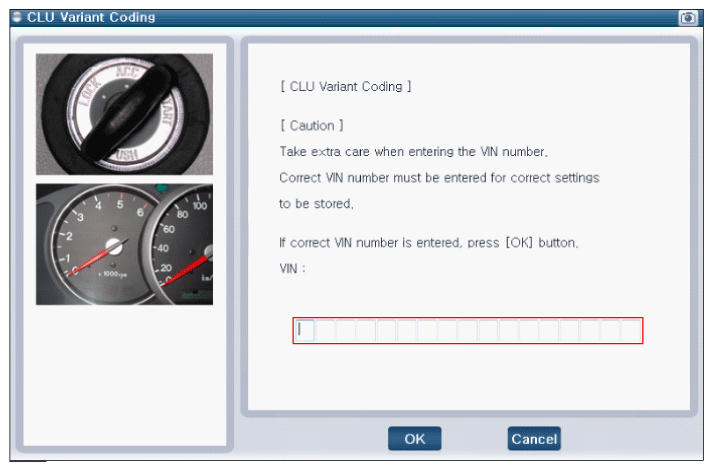

Fig 5: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 3 Of 3)
G12320646Courtesy of KIA MOTORS AMERICA, INC.
