Vehicle S/W Management

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS/GDS.
 Figures 1 - 2 below
Figures 3 - 5 below
Fig 1: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line) (1 Of 2)
G12320660Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Screen Display - Cluster Variant Coding, Enter CLU Coding Code (OFF-Line) (2 Of 2)
G12320661Courtesy of KIA MOTORS AMERICA, INC.

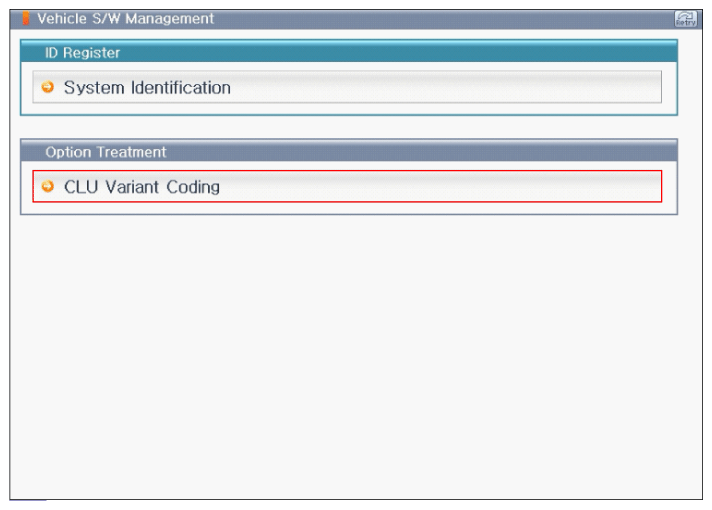

Fig 3: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 1 Of 3)
G12320662Courtesy of KIA MOTORS AMERICA, INC.

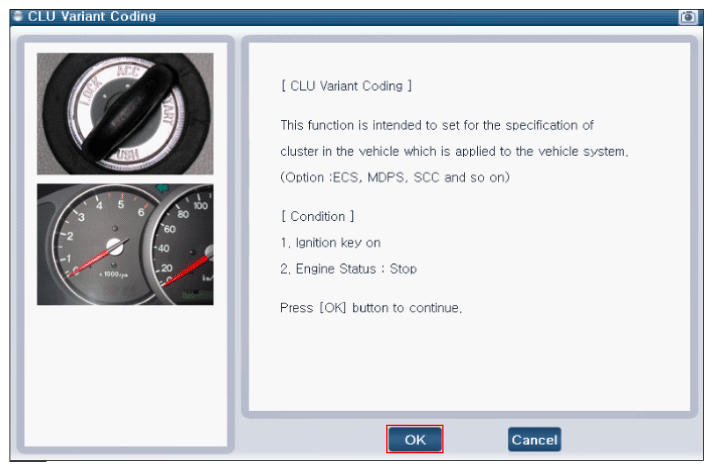

Fig 4: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 2 Of 3)
G12320663Courtesy of KIA MOTORS AMERICA, INC.

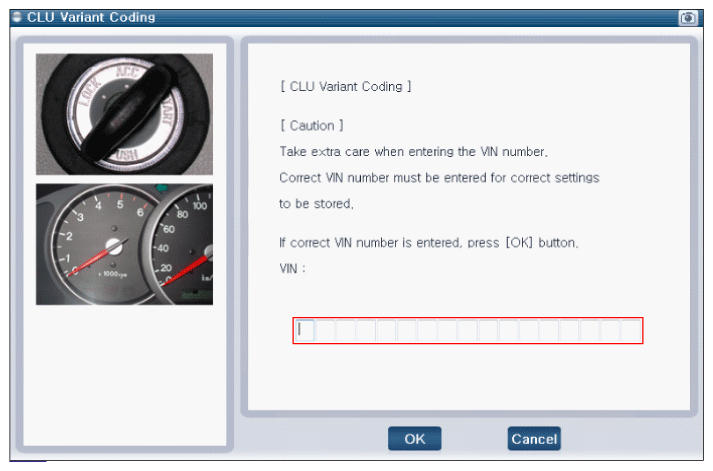

Fig 5: Screen Display - Cluster Variant Coding, Enter VIN Code (ON-Line; 3 Of 3)
G12320664Courtesy of KIA MOTORS AMERICA, INC.
