Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
Be sure to shut off the high voltage before doing any work related with the high voltage system (Refer to "HIGH VOLTAGE SHUT-OFF PROCEDURE "). Failure to follow the safety instructions may result in serious electrical injuries.

Shut off the High Voltage circuit.
(Refer to Hybrid Control System - "HIGH VOLTAGE SHUT-OFF PROCEDURE ")
Remove the air cleaner and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

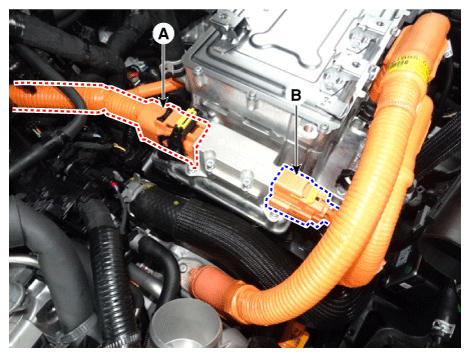

Disconnect the power cable (A) and inverter power cable (B).

Fig 1: Locating Power Cable And Inverter Power Cable
Courtesy of KIA MOTORS AMERICA, INC.

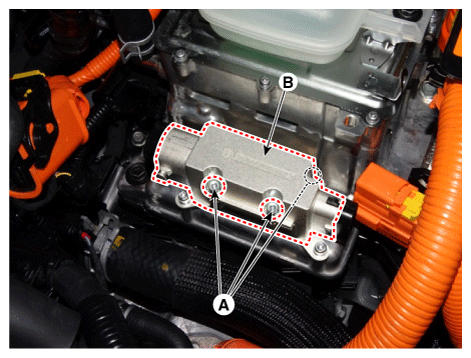

Remove the DC fuse cover (B) after loosening the mounting hexagon head bolts (A).
DC Fuse Cover Mounting Hexagon Head Bolt:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft)

Fig 2: Locating DC Fuse Cover Mounting Hexagon Head Bolts
Courtesy of KIA MOTORS AMERICA, INC.

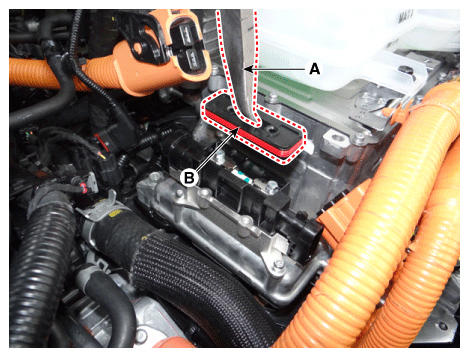

Remove the seal cover (B) using pliers (A).

Fig 3: Removing Seal Cover Using Pliers (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

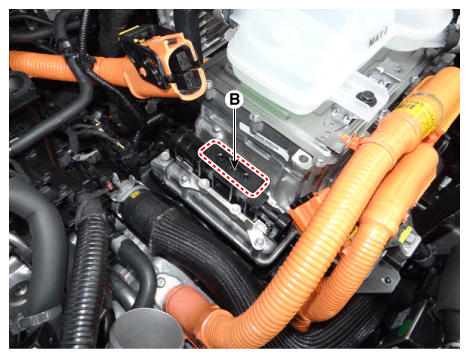

Fig 4: Removing Seal Cover Using Pliers (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

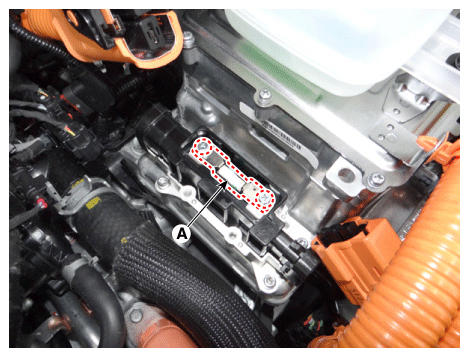

Remove the DC fuse (A) after loosening the mounting bolts.
DC Fuse Mounting Bolt:

9.3 - 10.4 N.m (0.95 - 1.06 kgf.m, 6.9 - 7.7 lb.ft)

Fig 5: Removing DC Fuse Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
