Component Location Index

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

[Engine Room]

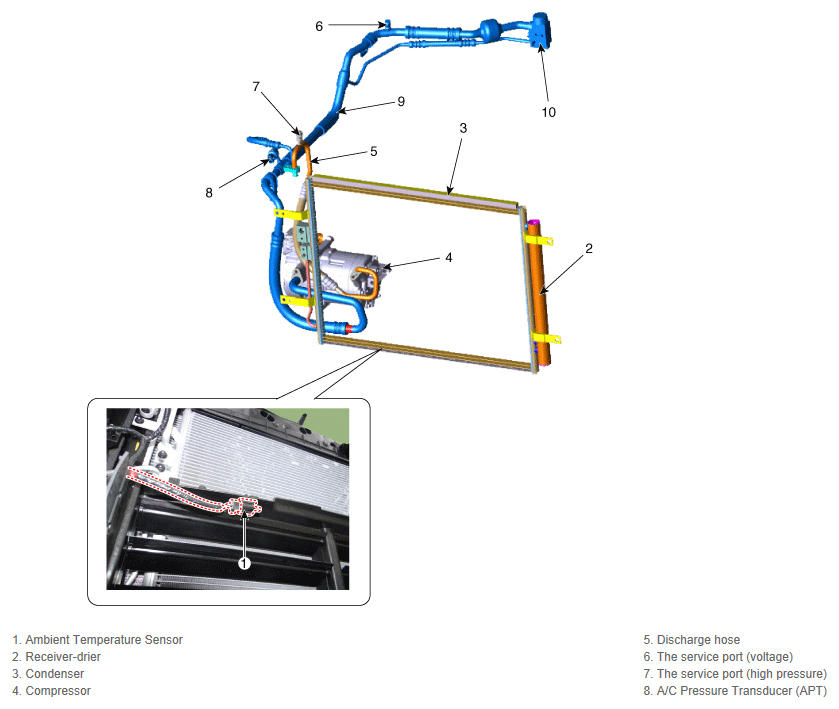

Fig 1: Locating Engine Room Component Index

Courtesy of KIA MOTORS AMERICA, INC.

[Interior]

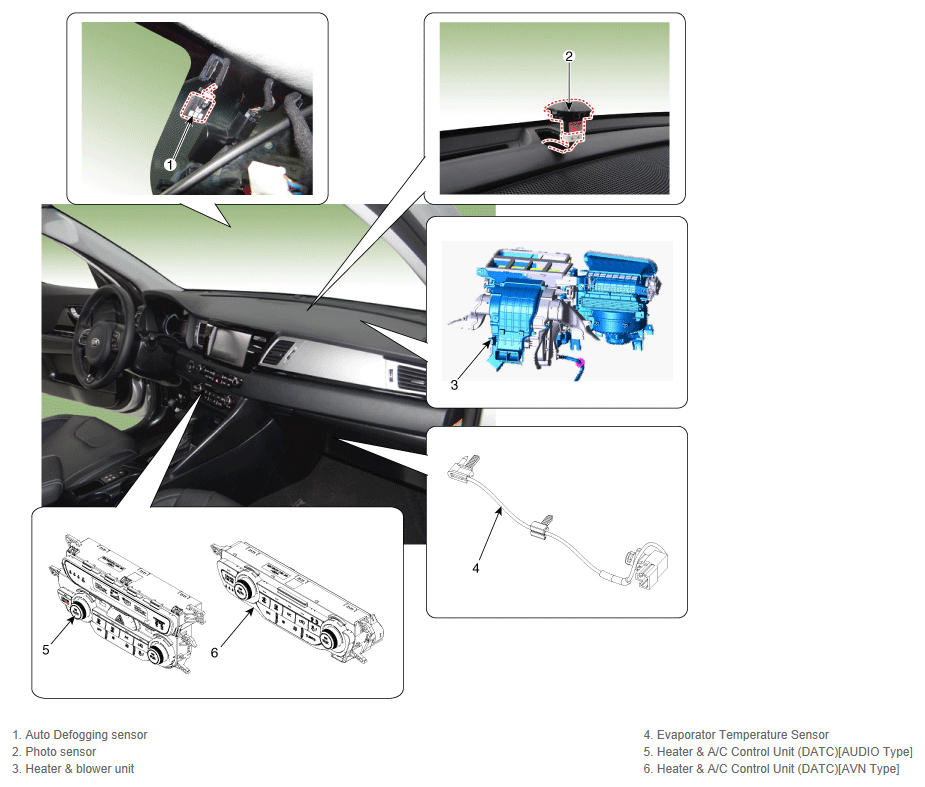

Fig 2: Locating Interior Component Index

Courtesy of KIA MOTORS AMERICA, INC.
