Multifunction Switch Inspection
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

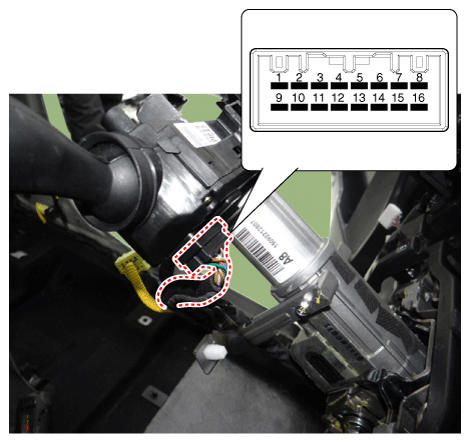

- Check for continuity between the terminals in each switch position as displayed below.
Courtesy of KIA MOTORS AMERICA, INC.
| Switch |
Switch Position |
Switch Terminal |
Resistance (Ω, ±3.5%) |
| Front wiper switch |
MIST |
1-9 |
330 |
| OFF |
∞ |
| Intermittent (AUTO) |
800 |
| LOW |
1, 800 |
| HIGH |
5, 700 |
| Rear wiper switch |
OFF |
9-16 |
∞ |
| LOW |
910 |
| HIGH |
2, 910 |
