Install in the reverse order of removal.
Adjust the clutch switch.
1. Adjust the gab by rotating the adjust nut (A) to satisfy the standard gap range.
  Standard Gap Range:

  0.5 - 1.0 mm (0.0197 - 0.0394 in.)
2. Tighten the nut (B) with the specified torque.
  Tightening Torque:

  7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

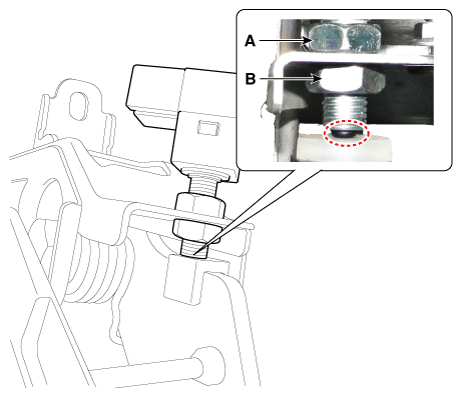

  Fig 1: Locating Adjust Nut
  Courtesy of KIA MOTORS AMERICA, INC.
