Repair Procedures: Disassembly

  1. Disconnect the negative battery cable.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

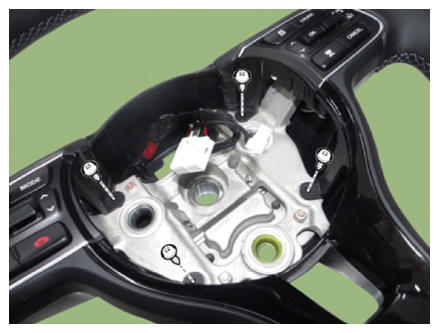

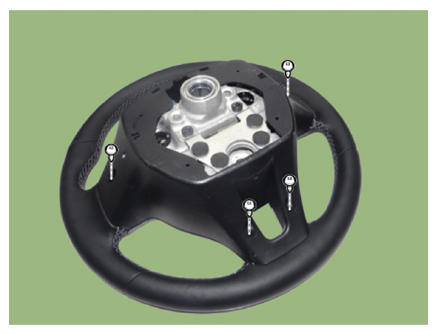

  3. Loosen the screw and then remove the steering back cover.
    G12697039Courtesy of KIA MOTORS AMERICA, INC.
    G12697040Courtesy of KIA MOTORS AMERICA, INC.

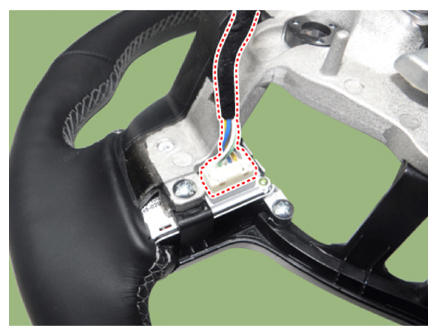

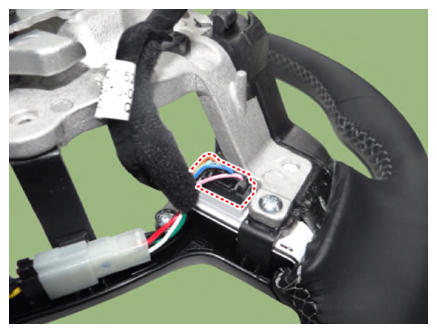

  4. Disconnect the remote control switch connector.
    G12697041Courtesy of KIA MOTORS AMERICA, INC.
    G12697042Courtesy of KIA MOTORS AMERICA, INC.

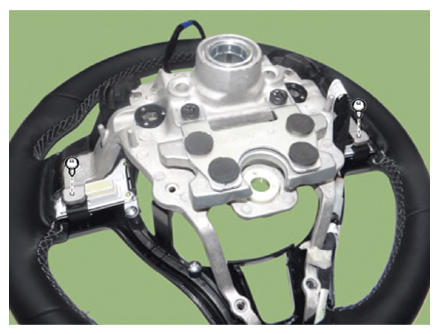

  5. Loosen the screw and then remove the remote control switch.
    G12697043Courtesy of KIA MOTORS AMERICA, INC.

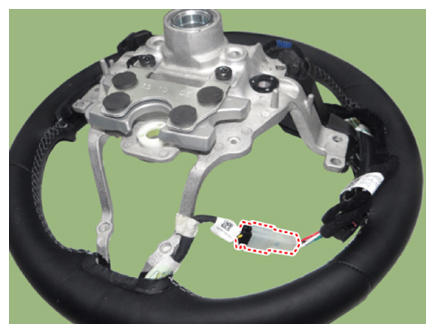

  6. Disconnect the heated pad connector.
    G12697044Courtesy of KIA MOTORS AMERICA, INC.

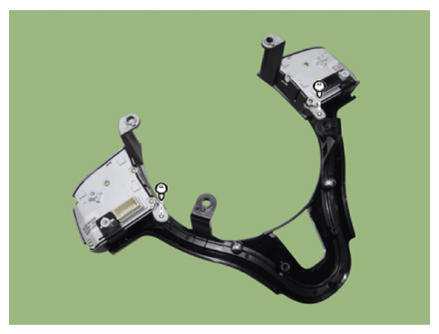

  7. Loosen the screw and then remove the remote control switch from the bezel.
    G12697045Courtesy of KIA MOTORS AMERICA, INC.

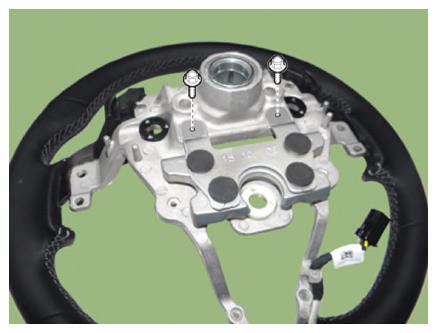

  8. Loosen the bolts and then remove the damper.
    G12697046Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
