Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the steering column upper and lower shroud panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Remove the multifunction switch.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

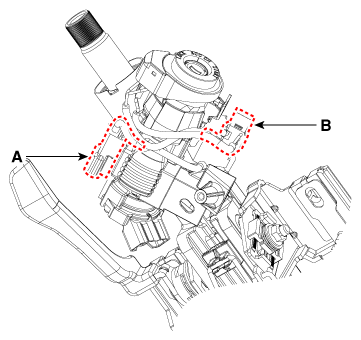

Remove the ignition switch connector (A) and key warning/immobilizer connector (B).

Fig 1: Locating Ignition Switch Connector And Key Warning/Immobilizer Connector
Courtesy of KIA MOTORS AMERICA, INC.

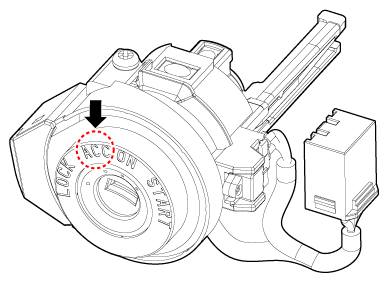

Insert key and turn it to ACC position.

Fig 2: Locating Key
Courtesy of KIA MOTORS AMERICA, INC.

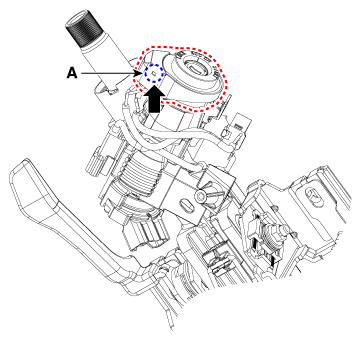

Pushing lock pin (A) with the awl.

Fig 3: Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.

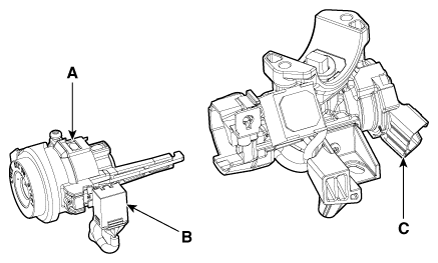

Remove the key lock cylinder (A).
B: Key warning switch

C: Ignition switch connector

Fig 4: Locating Key Lock Cylinder
Courtesy of KIA MOTORS AMERICA, INC.

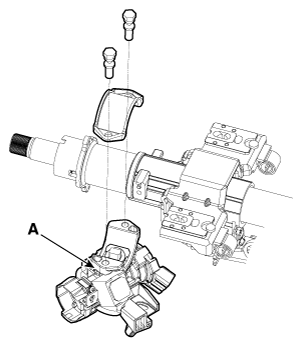

Remove the ignition switch (A) after loosening the mounting bolts.

Fig 5: Removing Ignition Switch Mounting Bolts

Courtesy of KIA MOTORS AMERICA, INC.
