Variant Coding: Notes

  1. Ignition "ON"

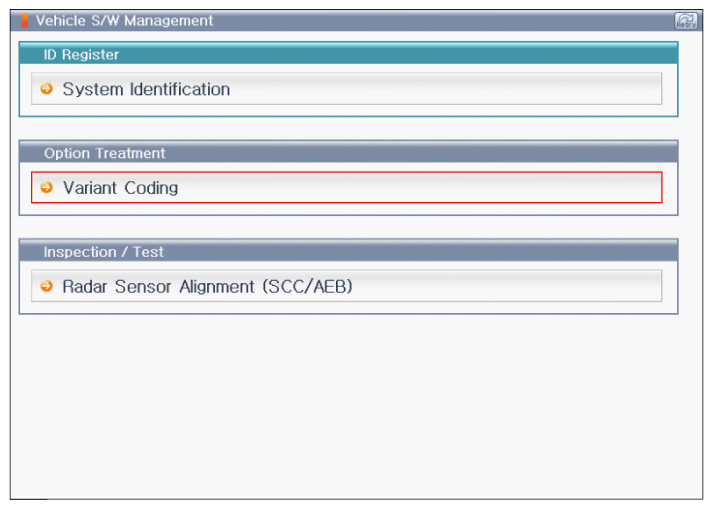

  2. Perform  "Vehicle S/W Management" → "SCC (AEB) Variant Coding" with KDS/GDS.

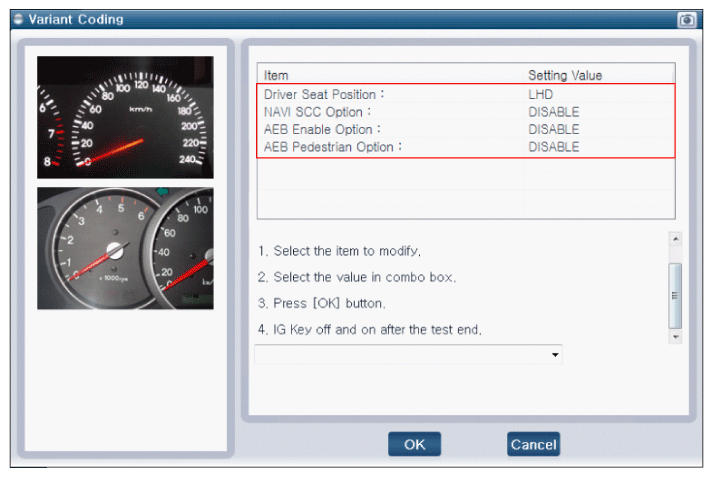

  3. Select the "Variant Coding" and set the proper option.
  4. Check for DTCs in the system.
    G12353904Courtesy of KIA MOTORS AMERICA, INC.
    G12353905Courtesy of KIA MOTORS AMERICA, INC.
    G12353906Courtesy of KIA MOTORS AMERICA, INC.
    G12353907Courtesy of KIA MOTORS AMERICA, INC.

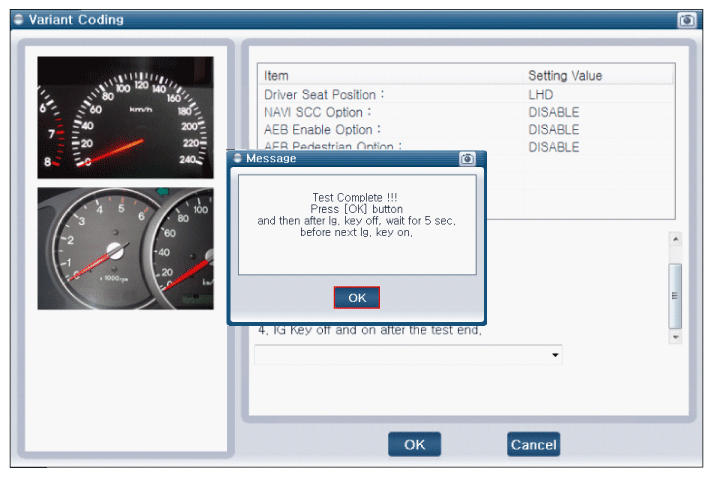

    G12353908Courtesy of KIA MOTORS AMERICA, INC.
