Components And Components Location: Components

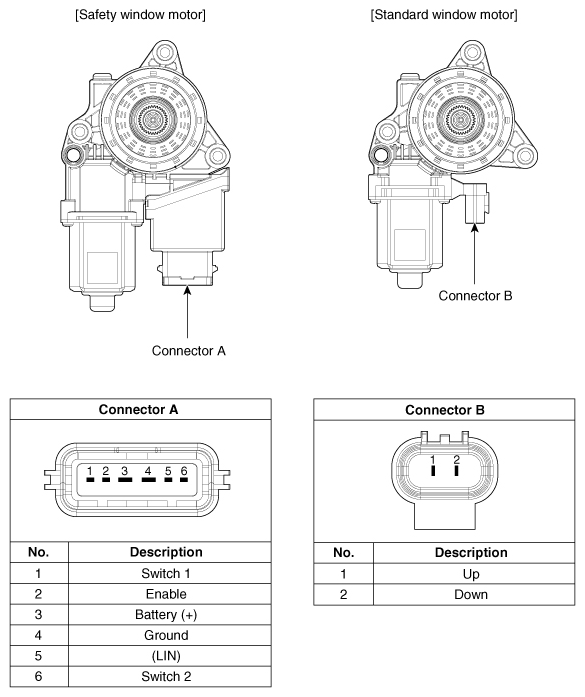

Fig 1: Safety & Standard Window Motors With Connector End View & Terminal Description
G12351729Courtesy of KIA MOTORS AMERICA, INC.
