Connector Pin Information

[All Safety]

[Driver/Passenger Safety, Driver/Passenger Safety + Door Lock Switch]

No.	Description
1	Mirror power (+)
2	Front left window
3	Front left Enable
4	GND
5	Rear right window lock switch
6	Rear right window (Up)
7	Rear right window (Down)
8	-
9	-
10	-
11	-
12	Mirror horizontal switch
13	Mirror vertical switch
14	Mirror center switch
15	Chassis-CAN (Low)
16	Chassis-CAN (High)
17	GND
18	Mirror sensor ground
19	Mirror horizontal sensor
20	Mirror vertical sensor
21	Mirror sensor power
22	-
23	IGN1
24	Battery (+)

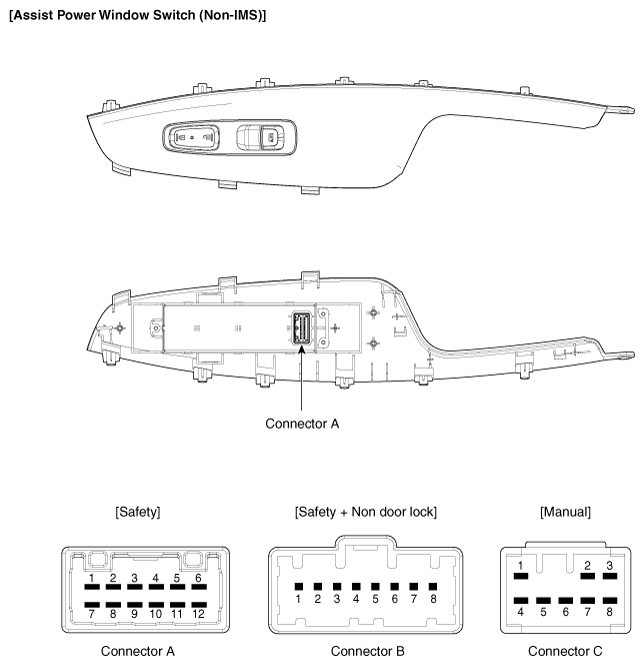

Fig 1: Assist Power Window Switch (Non-IMS) With Connector End Views

Courtesy of KIA MOTORS AMERICA, INC.

[Connector A]

(All Safety + Driver/Passenger Safety)

No.	Description
1	-
2	-
3	Tail lamp
4	Door lock indicator
5	-
6	-
7	Front right door unlock switch
8	-
9	Front right power window switch
10	-
11	GND
12	Front right door lock switch

(Driver Safety)

No.	Description
1	Front left/right window (Up)
2	Motor (Up)
3	Tail lamp
4	Battery (+)
5	Motor (Down)
6	Front left/right window (Down)
7	Front right door unlock switch
8	-
9	-
10	-
11	GND
12	Front right door lock switch

[Connector B]

(Safety + Non Door Lock)

No.	Description
1	-
2	Front right power window switch
3	-
4	Tail lamp
5	-
6	-
7	GND
8	-

[Connector C]

(Manual + Non Door Lock)

Rear Power Window Switch

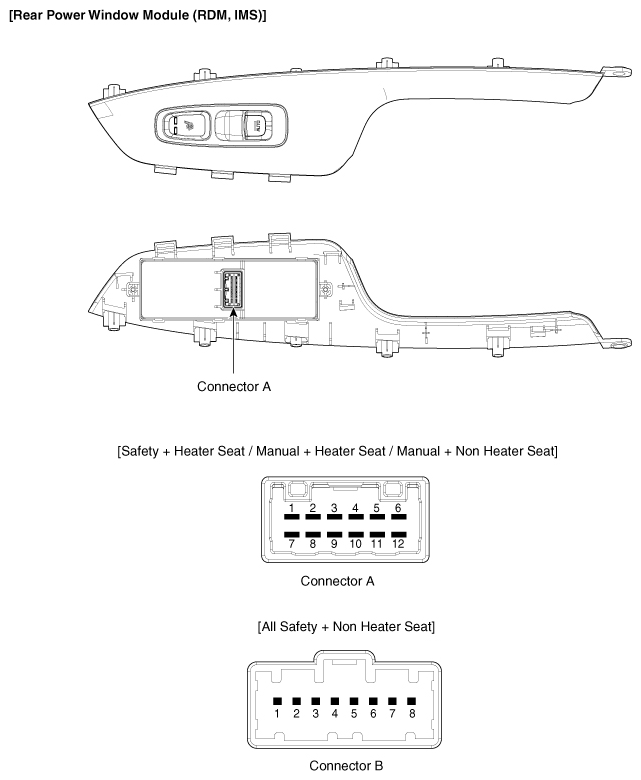

Fig 1: Rear Power Window Module (RDM, IMS) With Connector End Views

Courtesy of KIA MOTORS AMERICA, INC.

[Connector A]

(Safety + Heater Seat)

(Manual + Heater Seat)

(Manual + Non Heater Seat)

[Connector B]

(All Safety + Non Heater Seat)

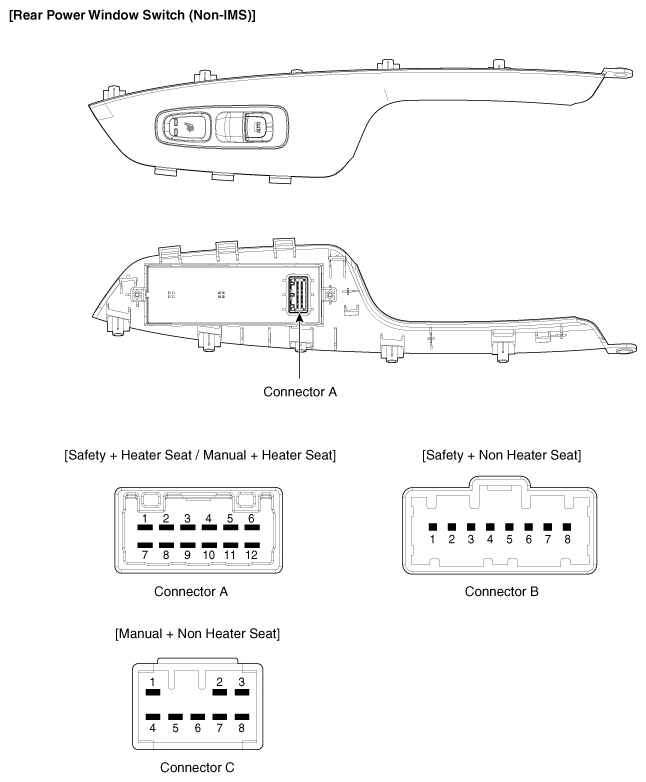

Fig 1: Rear Power Window Switch (Non-IMS) With Connector End Views

Courtesy of KIA MOTORS AMERICA, INC.

[Connector A]

(Safety + Heater Seat)

(Manual + Heater Seat)

[Connector B]

(Safety + Non Heater Seat)

No.	Description
1	-
2	Rear left/right power window switch
3	-
4	Tail lamp
5	-
6	-
7	GND
8	-

[Connector C]

(Manual + Non Heater Seat)
