Repair Procedures: Removal: Notes

CAUTION: Put on gloves to protect your hands.

NOTE: Use seat covers to avoid damaging any surfaces.

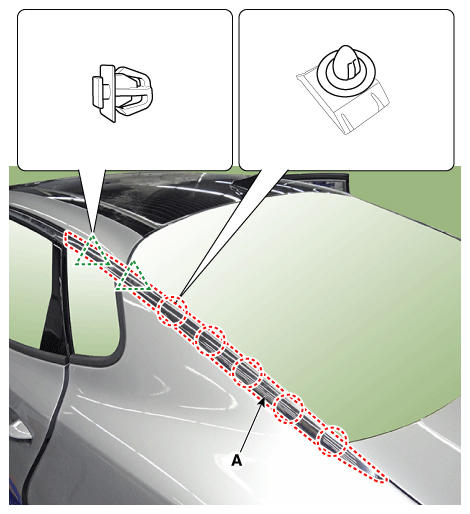

Remove the C pillar garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

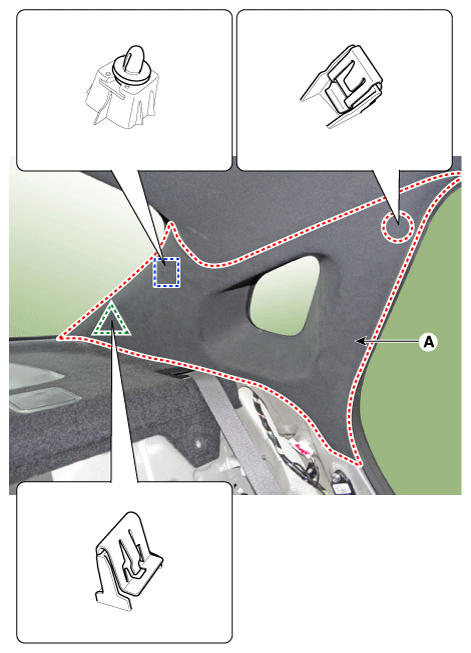

Remove the rear pillar trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

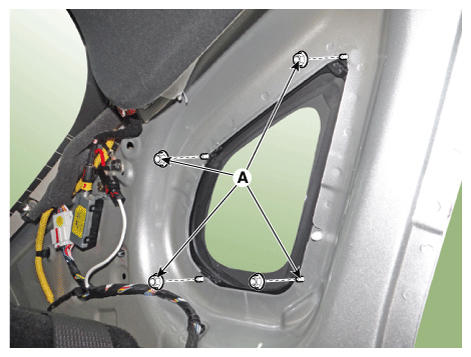

Loosen the quarter fixed glass mounting nuts (A).
Tightening Torque:

3.9 - 4.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the quarter fixed glass (A).

G12350774

Courtesy of KIA MOTORS AMERICA, INC.
