Components And Components Location: Components

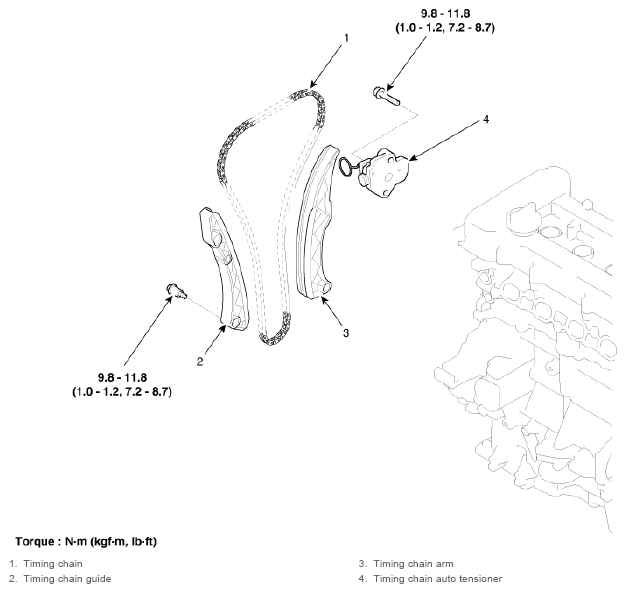

Fig 1: Timing Chain Components Location With Torque Specification
G12576288Courtesy of KIA MOTORS AMERICA, INC.
