Repair Procedures: Installation

Install the timing chain cover.

Before installing, remove the hardened sealant from the cylinder block and ladder frame surface.
Apply the liquid gasket (TB 1217H or LOCTITE 5900H) on the surface between the cylinder head and the cylinder block.
Width :3 - 5 mm (0.1181 - 0.1969 in.)

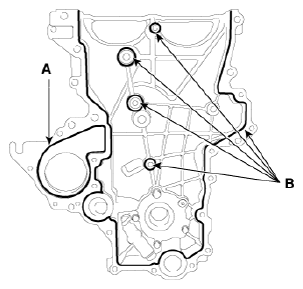

Apply the liquid gasket, THREE BOND 1282B or THREE BOND 1216E on the water pump contact parts (A) of the timing chain cover and THREE BOND 1217H or LOCTITE 5900H on the rest parts (B).

Reassemble the cover within 5 minutes.

Width :3.5 - 4.5 mm (0.1378 - 0.1772 in)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Remove oil or dust on the surface surely.

Align the dowel pin of the cylinder block and the holes of the oil pump.

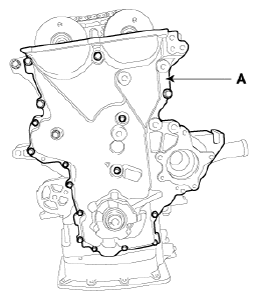

Tighten the bolts to install the timing chain cover (A).

Tightening torque

M8 bolts:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 kgf.m)

M6 bolts:

9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 kgf.m)

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.
