Repair Procedures: Disassembly

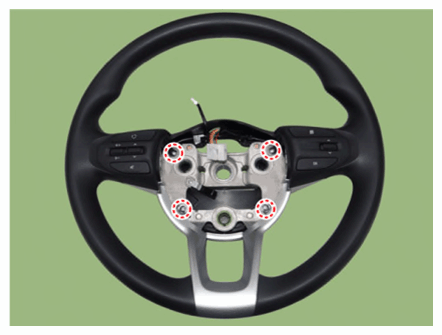

  1. Loosen the steering wheel screw.
    G12578538

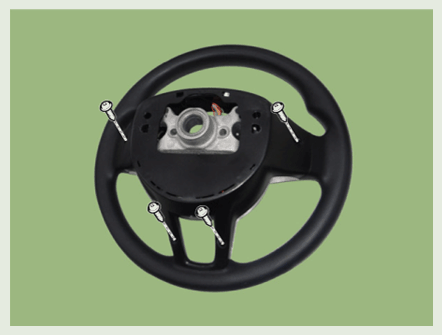

  2. Loosen the steering wheel lower cover screw.
    G12578539

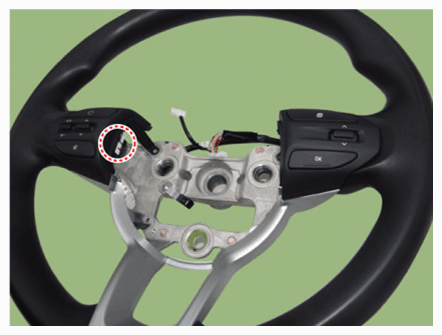

  3. Disconnect the switch connector.
    G12578540

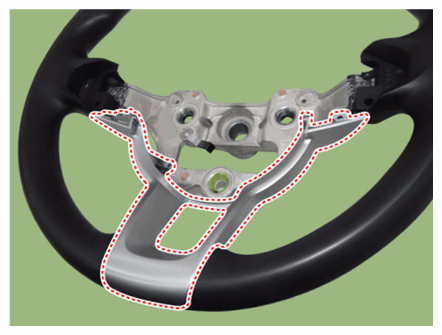

  4. Remove the bezel.
    G12578541
  5. Install in the reverse order of removal.
