Repair Procedures: Removal

Remove the knob by pulling it in the direction of upward after removing the boots from the console upper cover.
Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

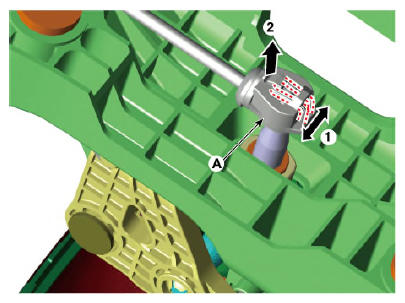

Remove the snap pin (A) and then remove the select cable from the select lever pin.

Courtesy of KIA MOTORS AMERICA, INC.

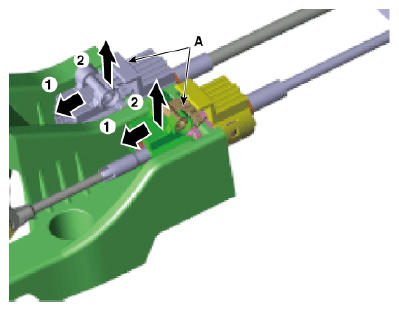

Remove the cable sockets (A) from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the shift lever mounting bolts (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

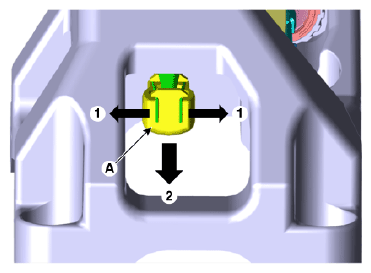

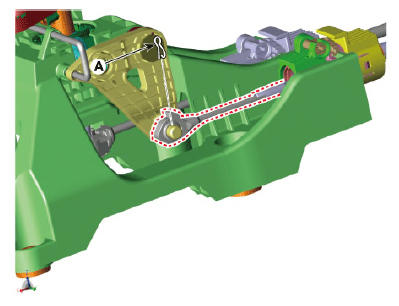

Remove the shift cable (A) from the shift lever.
[A Type]

Courtesy of KIA MOTORS AMERICA, INC.

[B Type]

Courtesy of KIA MOTORS AMERICA, INC.
