Repair Procedures: Replacement: [Rear]

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the rear seat back assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the side airbag module (A).

    Tightening torque:

    6.0 - 8.0 N.m (0.6 - 0.8 kgf.m, 4.4 - 5.9 lb-ft)

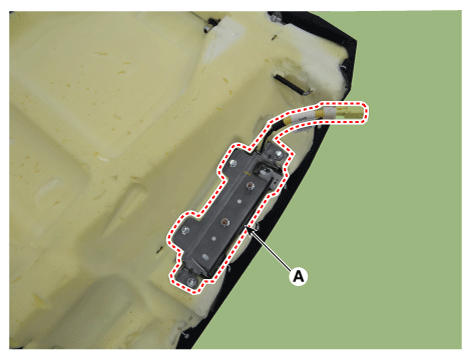

    Fig 1: Locating Side Airbag Module
    G12294373Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
