Repair Procedures: Replacement: [Front]

WARNING: This page is about a different car, the 2018 Kia Cadenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
    NOTE: After disconnecting the cables, wait at least 30 seconds.
  2. Remove the seat back cover.

    (Refer to Body - "FRONT SEAT BACK COVER ")

    NOTE: Improper mounting of the front seat back cover, so interfering with the normal deployment of side airbags and front seat backrest ensure that the cover is well seated.
  3. Loosen the side airbag module nuts and then remove the airbag module (A).

    Tightening torque:

    6.0 - 8.0 N.m (0.6 - 0.8 kgf.m, 4.4 - 5.9 lb-ft)

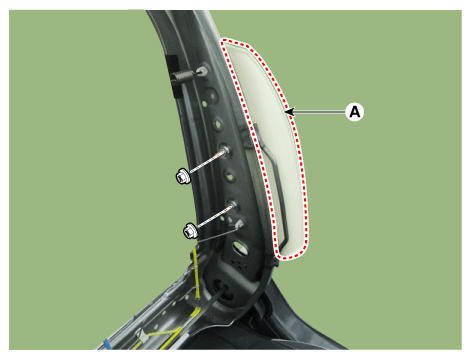

    Fig 1: Locating Airbag Module With Nuts
    G12294372Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
