Repair Procedures: Replacement

NOTE:

If a DTC occurs in the ECU, check the connectors and wiring. If no problem is found, replace the ECU.
Before replacing the MDPS ECU, use the diagnostic device to read the settings of the old ECU

Perform the "ECU data backup" by KDS following in the order below.
1. Connect self-diagnosis connector (16 pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "Motor Driven Power Steering" on KDS vehicle selection screen.
3. Select the "Part replacement (Power steering ECU)" on KDS screen, then select OK.

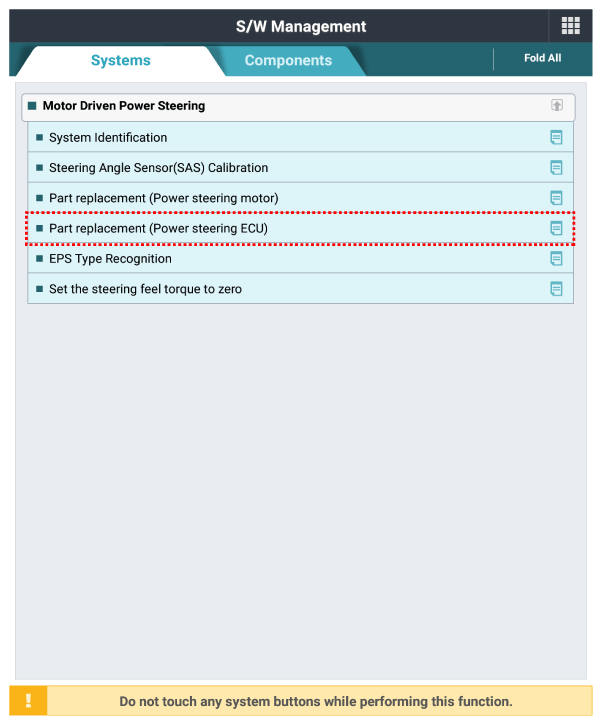

  Fig 1: Scantool Display - S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.
4. Proceed with the test according to the screen instructions.

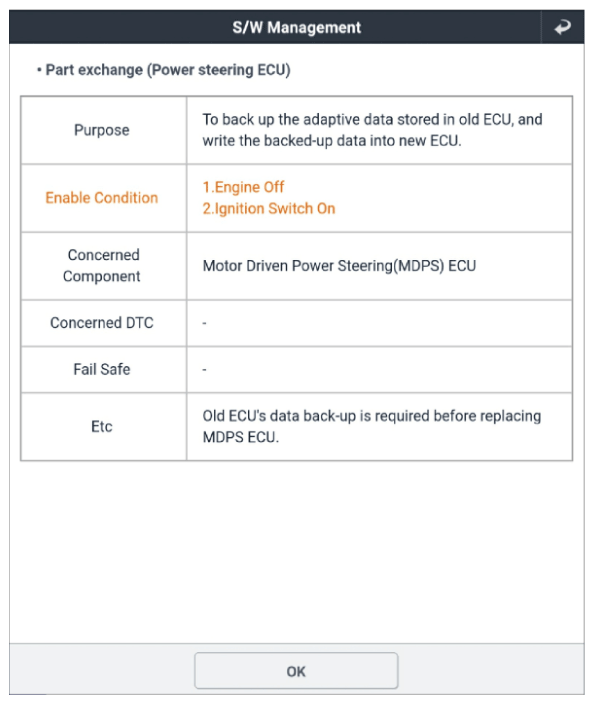

Fig 2: Scantool Display - Part Exchange (Power Steering Motor)
Courtesy of KIA MOTORS AMERICA, INC.

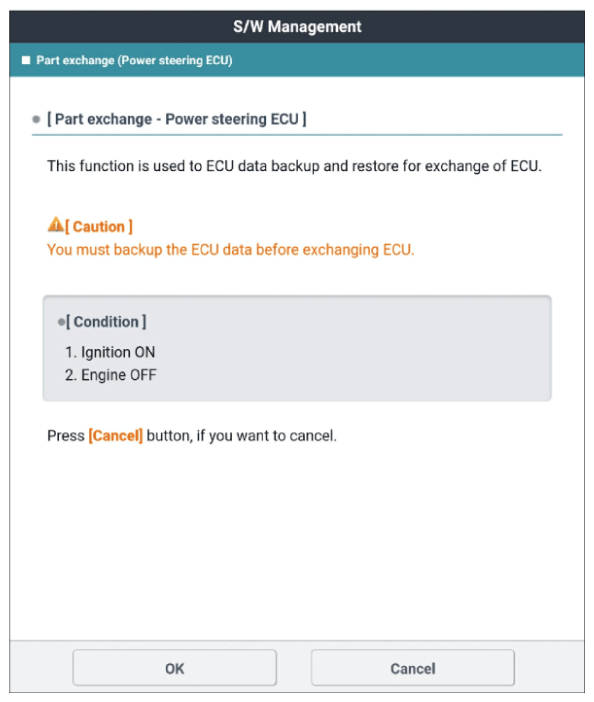

Fig 3: Scantool Display - Part Exchange Condition (Power Steering Motor)
Courtesy of KIA MOTORS AMERICA, INC.

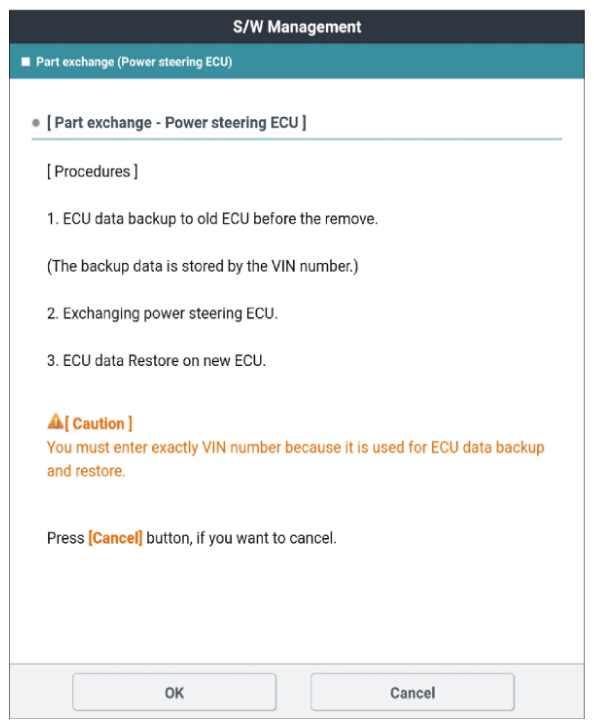

Fig 4: Scantool Display - Part Exchange Procedure (Power Steering Motor)
Courtesy of KIA MOTORS AMERICA, INC.

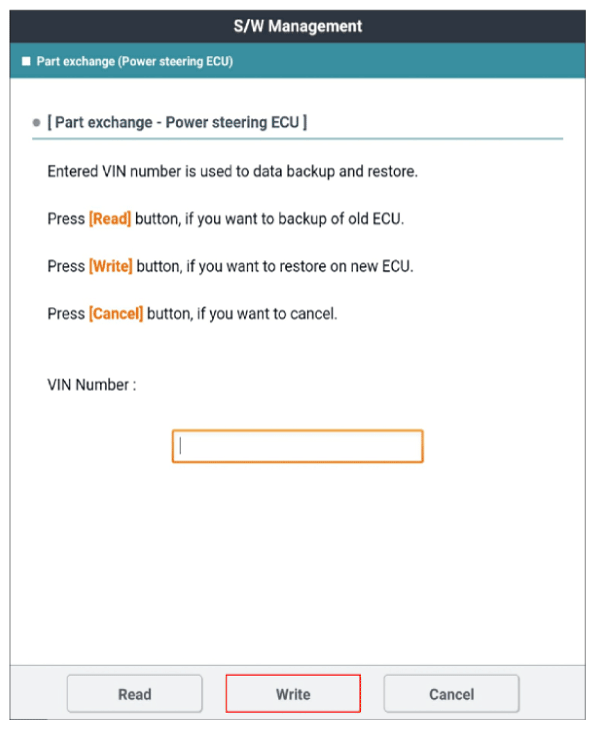

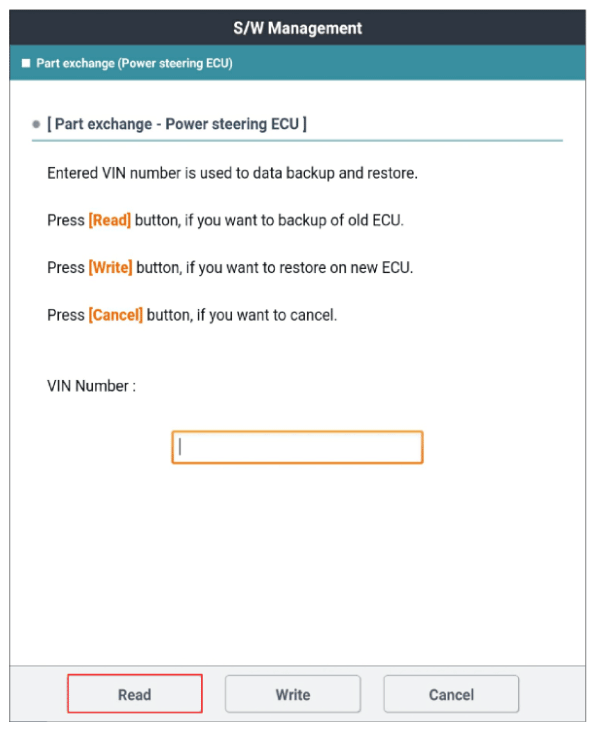

Fig 5: Scantool Display - VIN Number
Courtesy of KIA MOTORS AMERICA, INC.

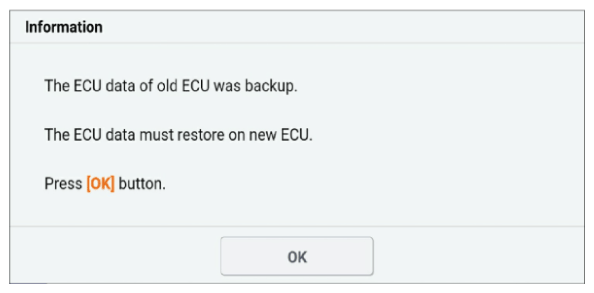

Fig 6: Scantool Display - Information
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If a DTC occurs in the ECU, check the connectors and wiring. If no problem is found, replace the ECU.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Disconnect the MDPS ECU connectors (A).

Fig 7: Locating MDPS ECU Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts (A) and then remove the MDPS ECU (B).

Fig 8: Locating MDPS ECU And Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Locating MDPS ECU And Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the star wrench (A) and then remove the MDPS ECU bracket (B).

Fig 10: Locating Star Wrench And MDPS ECU Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Perform the "ECU data restore" by KDS following in the order below.
1. Connect self-diagnosis connector (16 pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "Motor Driven Power Steering" on KDS vehicle selection screen.
3. Select the "Part replacement (Power steering ECU)" on KDS screen, then select OK.

  Fig 11: Scantool Display - S/W Management
  Courtesy of KIA MOTORS AMERICA, INC.
4. Proceed with the test according to the screen instructions.

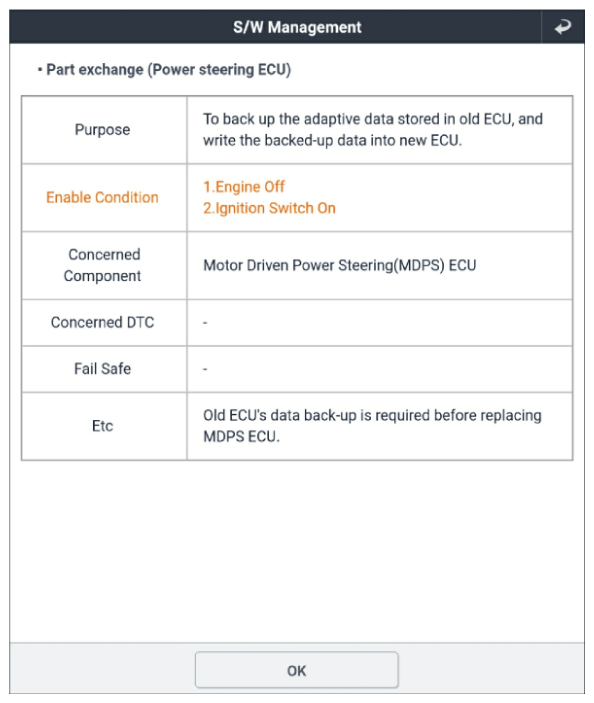

Fig 12: Scantool Display - Part Exchange (Power Steering Motor)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Scantool Display - Part Exchange Condition (Power Steering Motor)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 14: Scantool Display - Part Exchange Procedure (Power Steering Motor)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Scantool Display - VIN Number
Courtesy of KIA MOTORS AMERICA, INC.

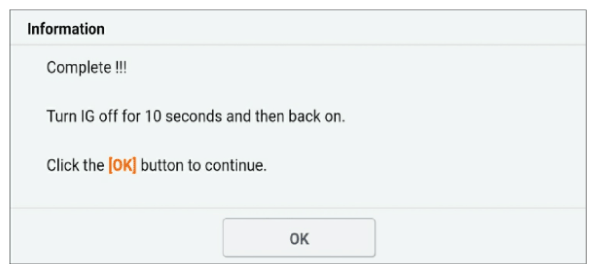

Fig 16: Scantool Display - Information
Courtesy of KIA MOTORS AMERICA, INC.
Perform the "Steering Angle Sensor (SAS) Calibration And Set The Steering Feel Torque To Zero .
Turn off the IGN switch and wait for 10 seconds or more. Then check the operation after starting the engine.
