PCM Neutralization

Ignition "ON" & Engine "OFF"
Perform "Neutralize Mode" in the "Vehicle S/W Management" with KDS/GDS.
Neutralize smart key unit with KDS/GDS. (See Figures below)
CAUTION: Pin code must be prepared to Neutralize Smart Key unit and to perform key teaching procedure.

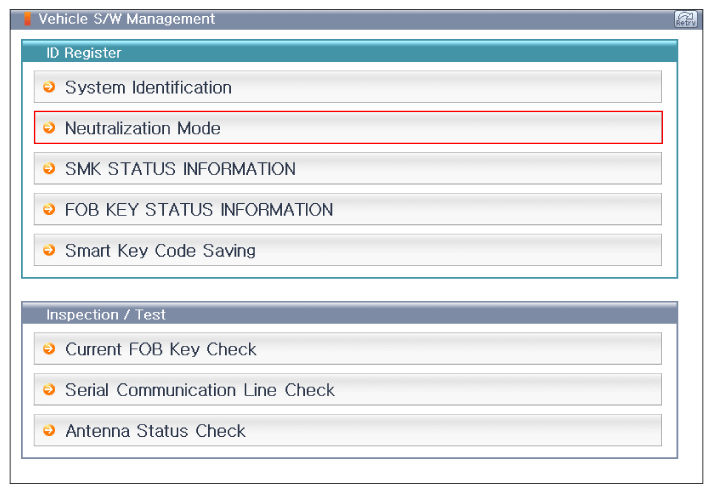

Fig 1: Screen Display - PCM Neutralization Process (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

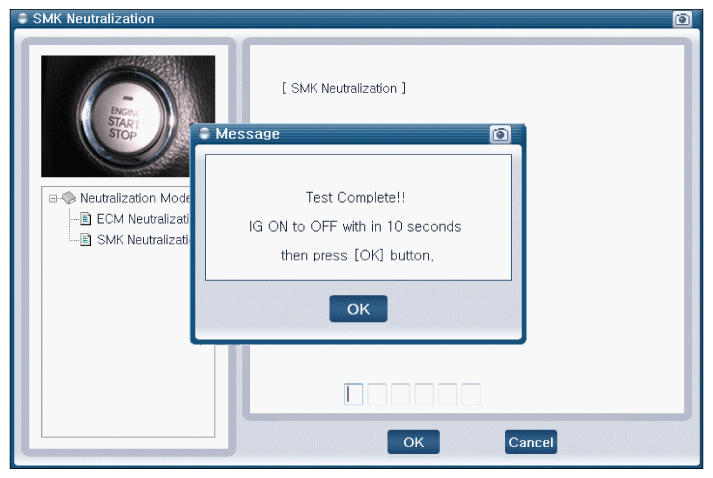

Fig 2: Screen Display - PCM Neutralization Process (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

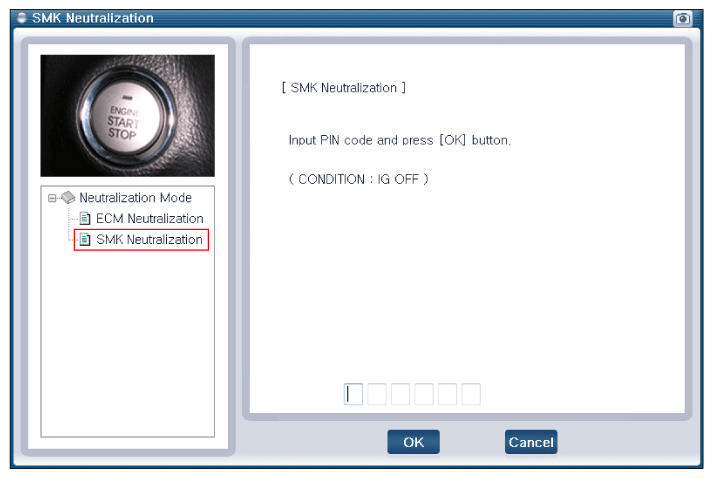

Fig 3: Screen Display - PCM Neutralization Process (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Did Neutralization successfully performed?
YES
- go to "Smart Key Unit Learning " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace PCM and then go to "Verification Of Vehicle Repair " procedure.
