Current Data Inspection

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Operate TCS/ESC (ESP) Switch.
  4. Monitor "ESP ON/OFF Switch (ESP Only)" and "TCS/ESC (ESP) OFF Warning Lamp (ESP Only)" parameters in "Current Data  " with KDS/GDS.

    Specification:  Switch Operated "ON"/Switch Not Operated "OFF" (Refer to Fig 1 below)

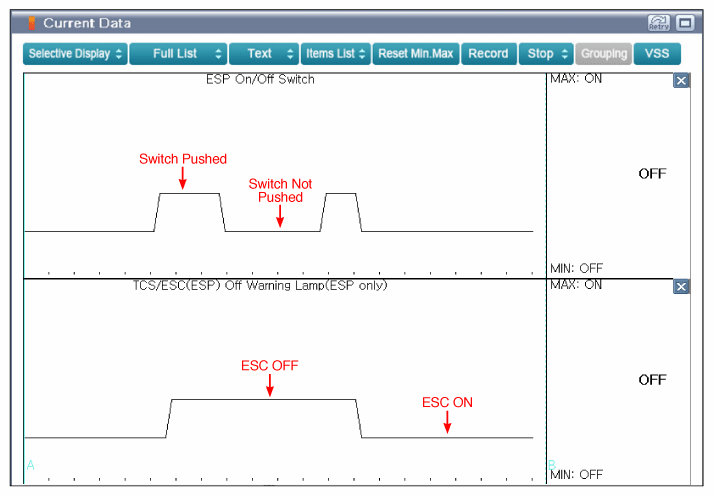

    Fig 1: Scantool Display - ESP ON/OFF Switch (ESP Only) And TCS/ESC (ESP) OFF Warning Lamp (ESP Only) Parameters In Current Data
    G12209378Courtesy of KIA MOTORS AMERICA, INC.
  5. Is parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
