Pressure Sensor Calibration

Connect KDS to DLC (Data Link Cable).
Select the "Vehicle S/W Management" about related DTC with KDS.

Courtesy of KIA MOTORS AMERICA, INC.

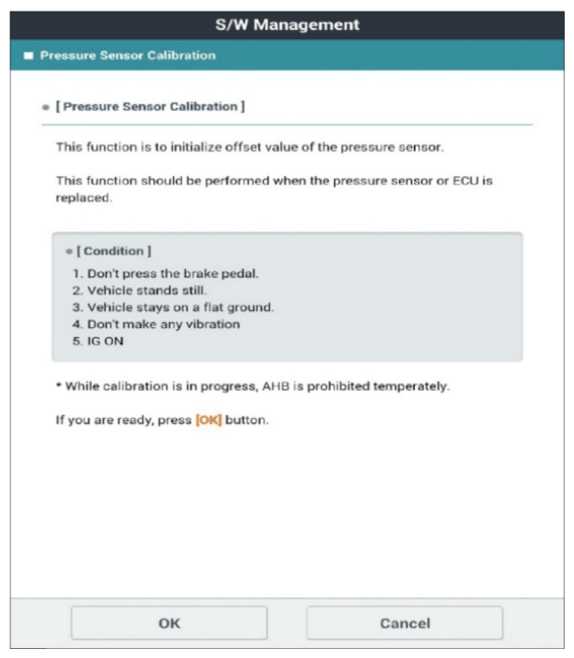

Figure) Pressure sensor calibration 1

Courtesy of KIA MOTORS AMERICA, INC.

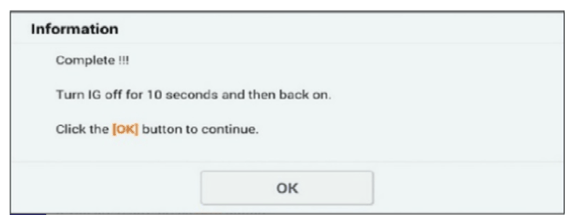

Figure) Pressure sensor calibration 2
Are the parameters displayed correctly?
YES
- Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace IBAU and perform "Vehicle S/W Management".
