Repair Procedures: Inspection

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Check for resistance or output voltage between terminals in each switch position.

[Audio]

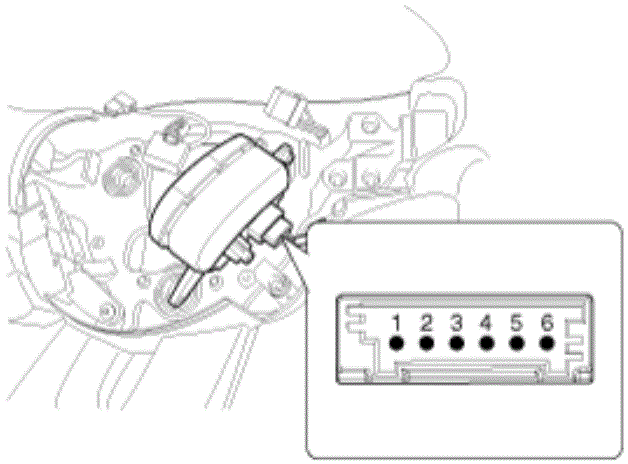

Fig 1: Locating Audio Remote Control Connector Terminals (Audio)

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (Ω±5%)	Output voltage
Seek up	2-4	430 Ω	0.4 V ± 0.22
Seek down	2-4	1.1 kΩ	1.0 V ± 0.22
Mode	2-4	2.11 kΩ	1.5 V ± 0.22
Mute	2-4	3.11 kΩ	2.0 V ± 0.22
Volume up	2-4	4.61 kΩ	2.5 V ± 0.22
Volume down	2-4	6.81 kΩ	3.0 V ± 0.22

[Cruise]

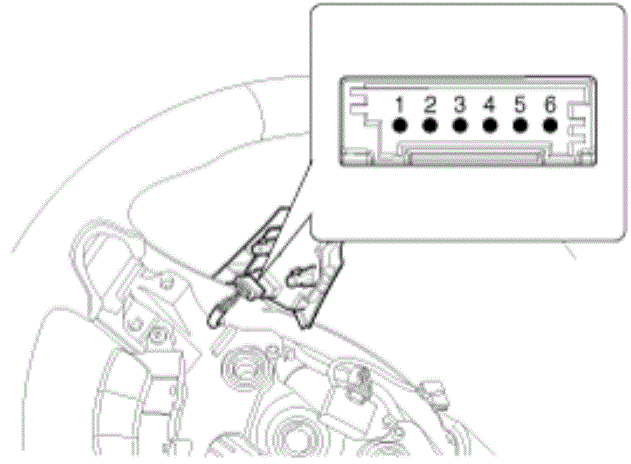

Fig 2: Locating Audio Remote Control Connector Terminals (Cruise)

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (Ω±5%)	Output voltage
Cancel	2-4	180 Ω	0.8V ± 0.17
Set	2-4	330 Ω	1.2 V ± 0.17
Resume	2-4	550 Ω	1.8 V ± 0.22
Cruise	2-4	880 Ω	2.3 V ± 0.22
Speed limit	2-4	2.54 kΩ	3.6 V ± 0.22

[Voice + Bluetooth]

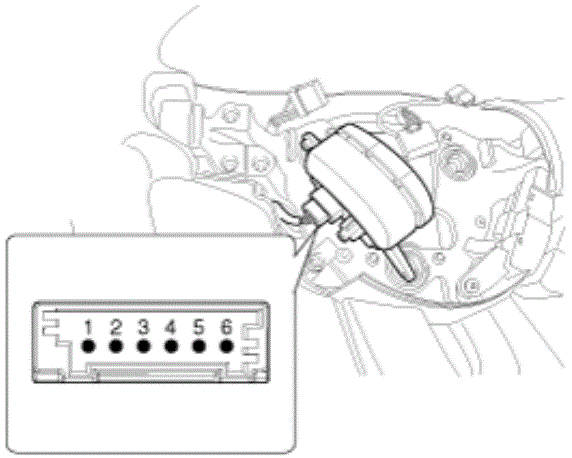

Fig 3: Locating Audio Remote Control Connector Terminals (Voice + Bluetooth)

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (Ω±5%)	Output voltage
Voice	2-4	10.71 kΩ	3.5 V ± 0.22
Call off	2-4	18.91 kΩ	4.0 V ± 0.22
Call	2-4	40.91 kΩ	4.5 V ± 0.22

[Flex steer + Trip + Reset]

Fig 4: Locating Audio Remote Control Connector Terminals (Flex Steer + Trip + Reset)

Courtesy of KIA MOTORS AMERICA, INC.

Switch	Connector terminal	Resistance (Ω±5%)	Output voltage
Flex steer	2-4	180 Ω	0.8V ± 0.17
Trip	2-4	330 Ω	1.2 V ± 0.17
Reset	2-4	550 Ω	1.8 V ± 0.22
