MDPS System A/S Workflow

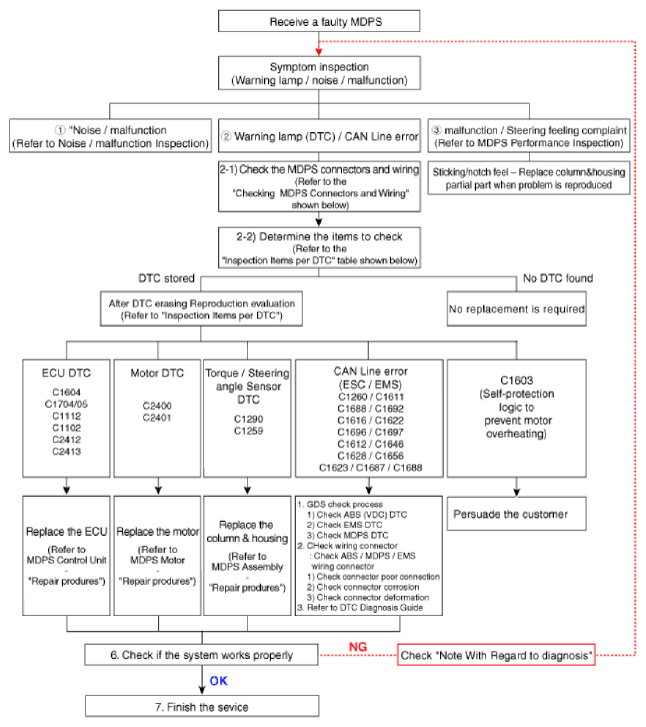

G12818168Courtesy of KIA MOTORS AMERICA, INC.

(1) Noise/malfunction Inspection

G12818169Courtesy of KIA MOTORS AMERICA, INC.

(2) Warning lamp (DTC)/CAN Line error
