Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

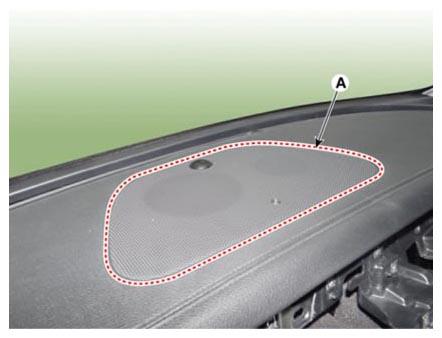

Using a scraper or remover, remove the crash pad center speaker grille (A).

Courtesy of KIA MOTORS AMERICA, INC.

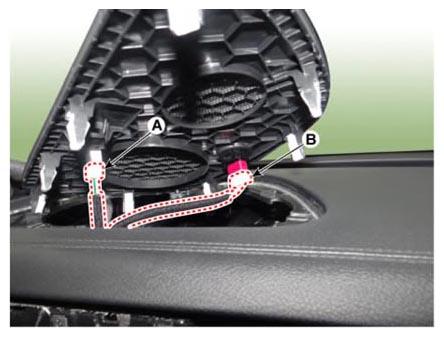

Disconnect the security connector (A) and auto light & Photo sensor connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

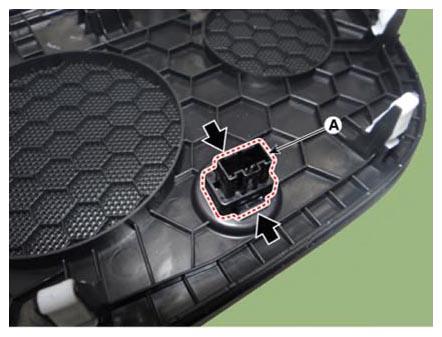

Remove the auto light sensor (A) after releasing the fixed hooks.

Courtesy of KIA MOTORS AMERICA, INC.
