Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

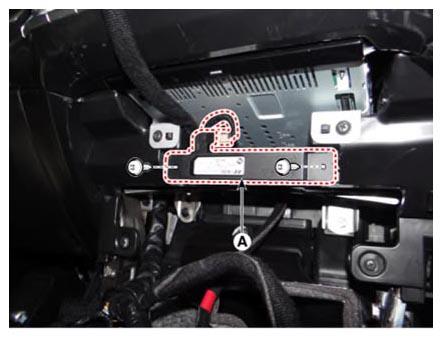

  3. Remove the interior 1 antenna (A) after disconnecting the connector and loosening the mounting screws.
    G12798839Courtesy of KIA MOTORS AMERICA, INC.
