Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Separate the engine room relay block.
(Refer to " RELAY BOX (ENGINE COMPARTMENT) ")

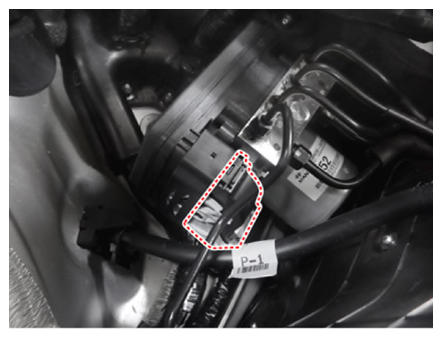

Disconnect the ESC connector.

Courtesy of KIA MOTORS AMERICA, INC.

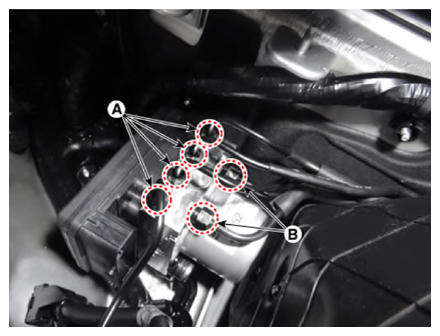

Loosen the ESC brake tube flare nuts.
Tightening torque:

(A): 16.7 - 20.6 N.m (1.7 - 2.1 kgf.m, 12.3 - 15.2 lb.ft)

(B): 20.6 - 24.5 N.m (2.1 - 2.5 kgf.m, 15.2 - 18.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

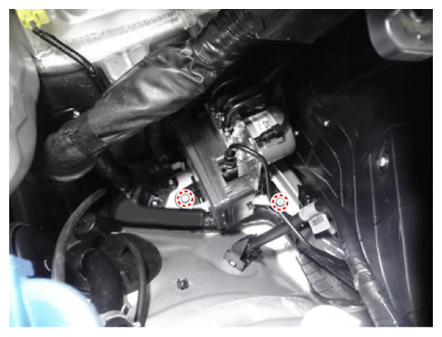

Loosen the ESC bracket bolts and then remove the ESC.
Tightening torque:

16.7 - 25.5 N.m (2.0 - 3.0 kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Never attempt to disassemble the ESC.
- The ESC must be transported and stored in.
- Never shock to the ESC.
