Components And Components Location: Components

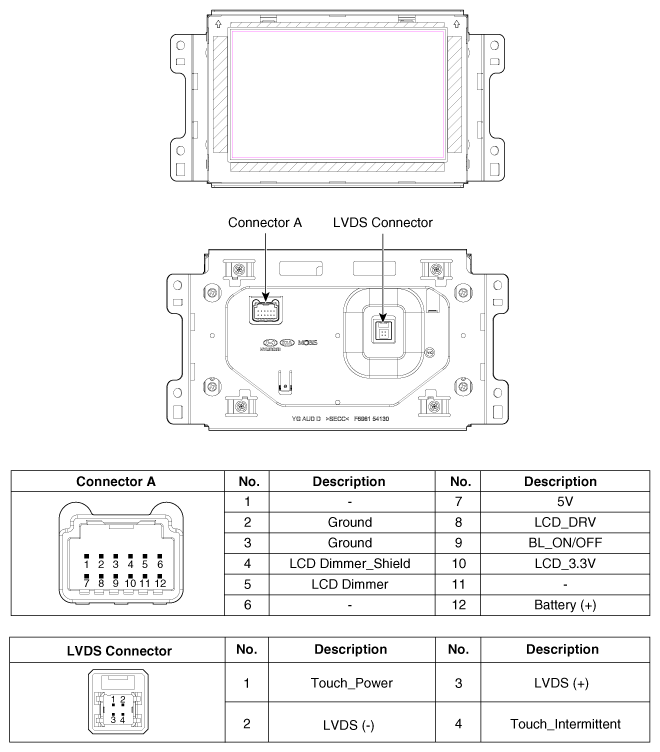

Fig 1: Locating Audio Monitor With Connector End View
G12297211Courtesy of KIA MOTORS AMERICA, INC.
