Repair Procedures: Inspection

  1. Check the resistance between terminals in each switch position (LH).

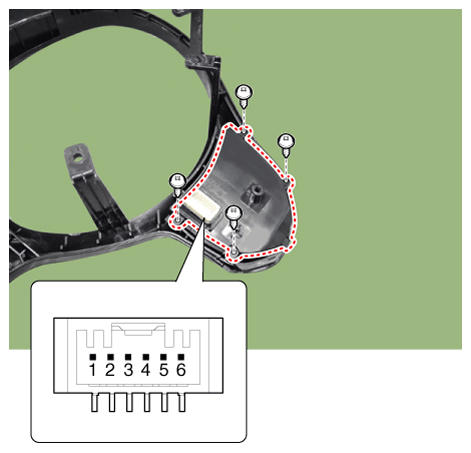

    Fig 1: Audio Remote Control Switch With Connector End View (LH)
    G12297250Courtesy of KIA MOTORS AMERICA, INC.

    [LH: Audio + Hands free + Voice]

    Switch Connector terminal Resistance (±5%)
    SEEK Up 1-6 430 kΩ
    SEEK Down 1.11 kΩ
    MODE 2.11 kΩ
    MUTE 3.11 kΩ
    Volume (+) 4.61 kΩ
    Volume (-) 6.81 kΩ
    Voice 10.71 kΩ
    END 18.91 kΩ
    SEND 40.91 kΩ
  2. Check the resistance between terminals in each switch position (RH).

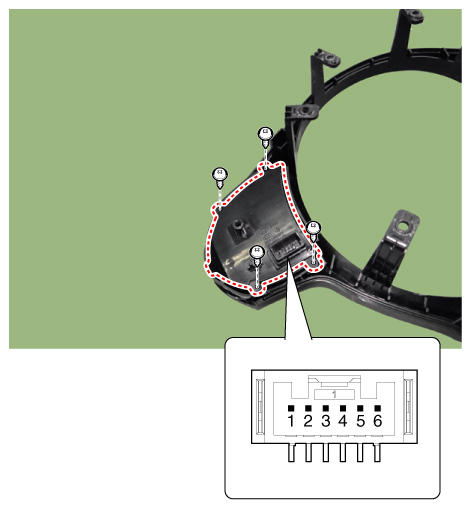

    Fig 2: Audio Remote Control Switch With Connector End View (RH)
    G12297251Courtesy of KIA MOTORS AMERICA, INC.

    [RH: Cruise + Trip]

    Switch Connector terminal Resistance (±5%)
    Cancel 2-6 390 Ω
    SET - 610 Ω
    RES + 910 Ω
    Cruise ON/OFF 1.38 kΩ
    SCC (Following distance control) 3.63 kΩ
    Group 1-6 390 Ω
    Trip Up 610 Ω
    Trip Down 910 Ω
    ENTER 1.38 kΩ
