Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the steering wheel assembly.
(Refer to Steering System - "STEERING WHEEL ")

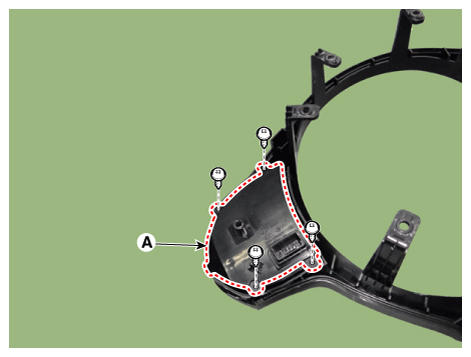

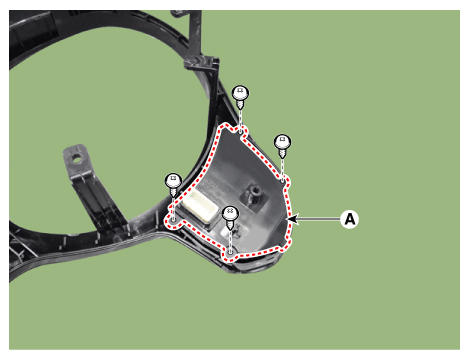

Remove the steering back cover (A) after loosening the mounting screws.

Fig 1: Locating Steering Back Cover With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

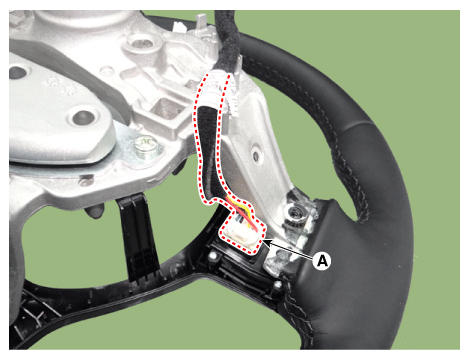

Disconnect the steering wheel remote control connector (A).
[LH]

Fig 2: Locating Steering Wheel Remote Control Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.

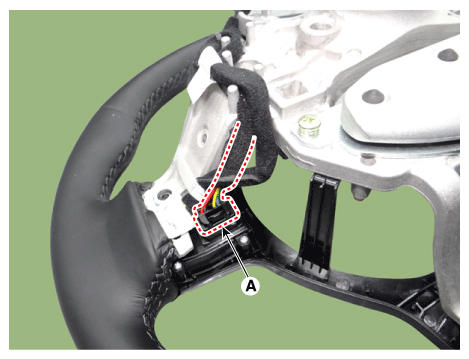

[RH]

Fig 3: Locating Steering Wheel Remote Control Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.

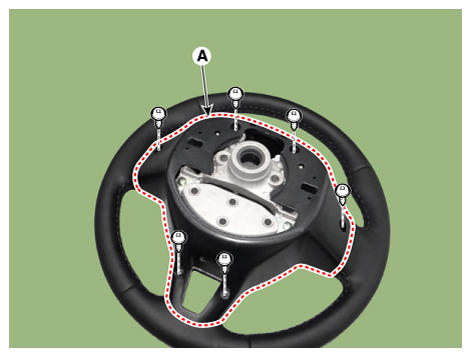

Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

Fig 4: Locating Steering Wheel Remote Control Assembly With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

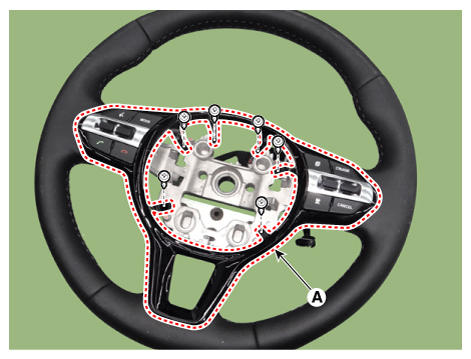

Remove the steering wheel remote control (A) after loosening the mounting screws.
[LH]

Fig 5: Locating Steering Wheel Remote Control With Mounting Screws (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Fig 6: Locating Steering Wheel Remote Control With Mounting Screws (RH)
Courtesy of KIA MOTORS AMERICA, INC.
