Components And Components Location: Components

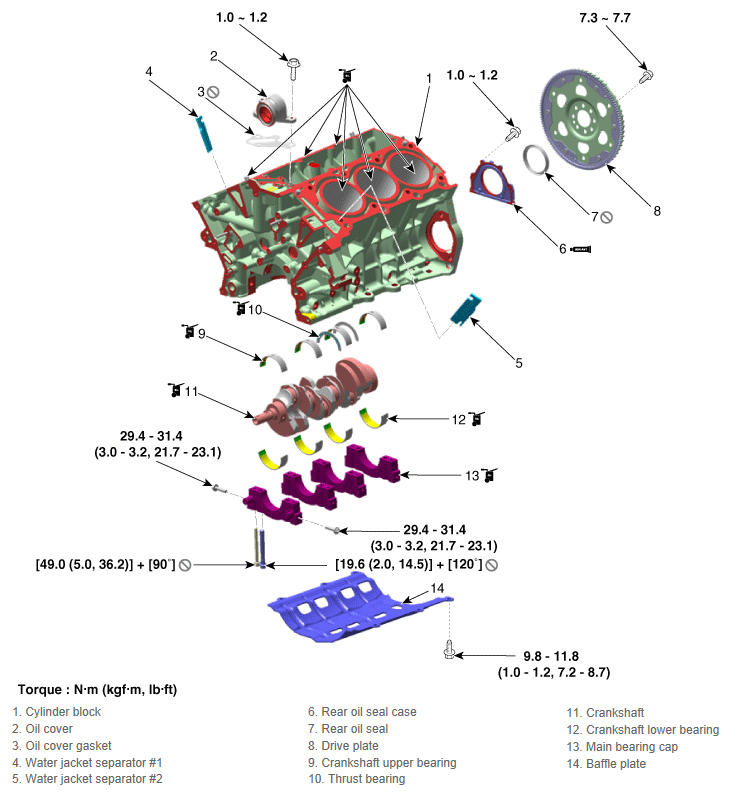

Fig 1: Cylinder Block Components With Torque Specification (1 Of 2)
G12287802Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Cylinder Block Components With Torque Specification (2 Of 2)
G12287803Courtesy of KIA MOTORS AMERICA, INC.
