Read VIN

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON". & engine "ON".
Perform "READ VIN " in "Vehicle S/W Management" with KDS/GDS.
Specification: Refer to Fig 1, Fig 2, Fig 3

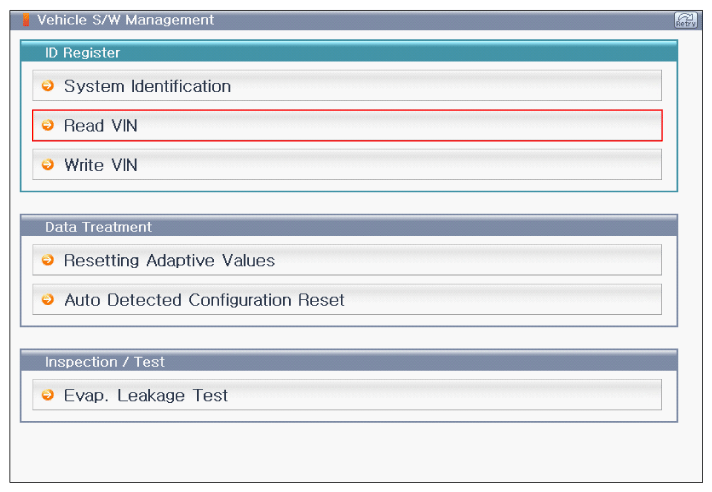

Fig 1: Scantool Display - Vehicle S/W Management (Read VIN Procedure)
Courtesy of KIA MOTORS AMERICA, INC.

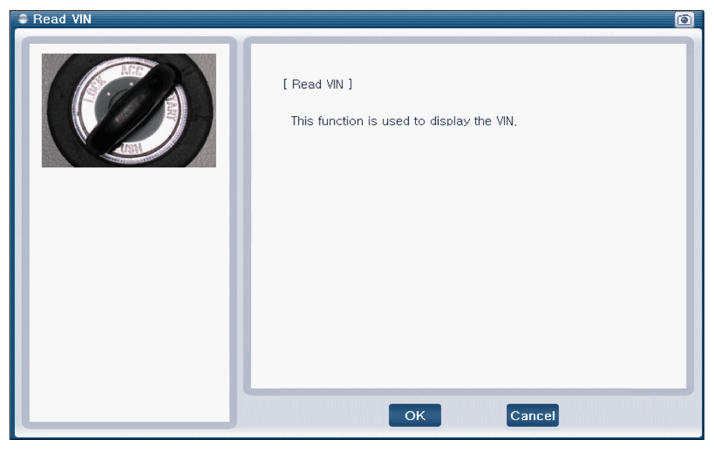

Fig 2: Scantool Display - Read VIN Procedure
Courtesy of KIA MOTORS AMERICA, INC.

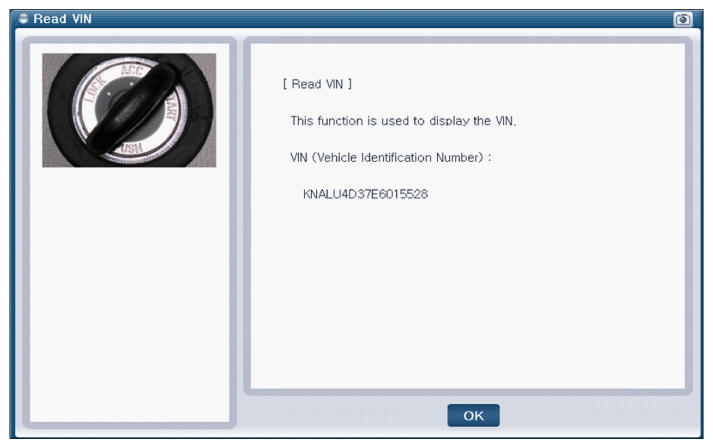

Fig 3: Scantool Display - Read VIN Procedure With Code
Courtesy of KIA MOTORS AMERICA, INC.
When the "Read VIN" is finished perfectly?
YES
- Go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "WRITE VIN " procedure.
