Repair Procedures: Removal: Notes

NOTE:

Be careful that no contaminant enters into spark plug holes.

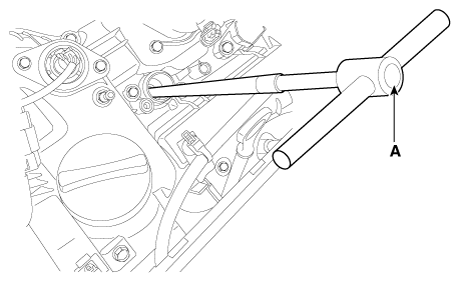

Use the spark plug wrench (A) to prevent the damage on the spark plug.

Fig 1: Removing Spark Plug
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

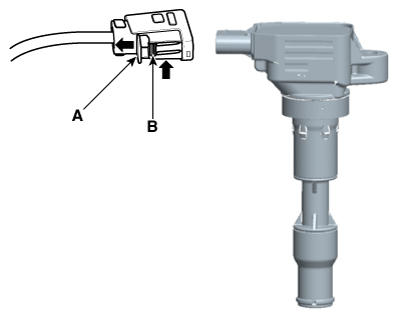

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 2: Pulling Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
