Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12852878Courtesy of KIA MOTORS AMERICA, INC.
G12852879Courtesy of KIA MOTORS AMERICA, INC.

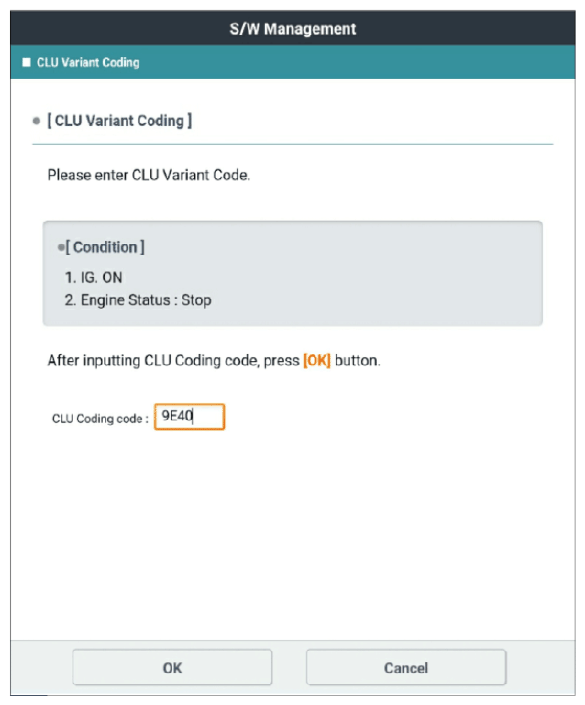

G12852880Courtesy of KIA MOTORS AMERICA, INC.

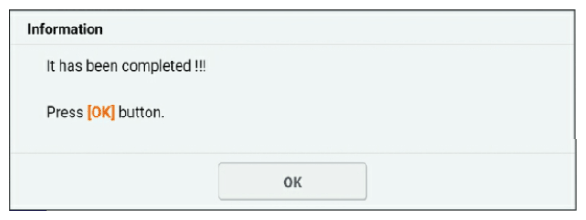

G12852881Courtesy of KIA MOTORS AMERICA, INC.

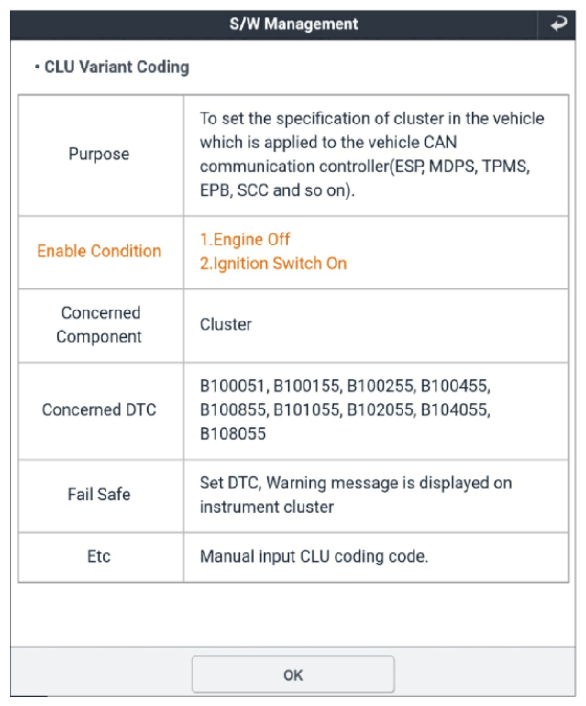

G12852882Courtesy of KIA MOTORS AMERICA, INC.

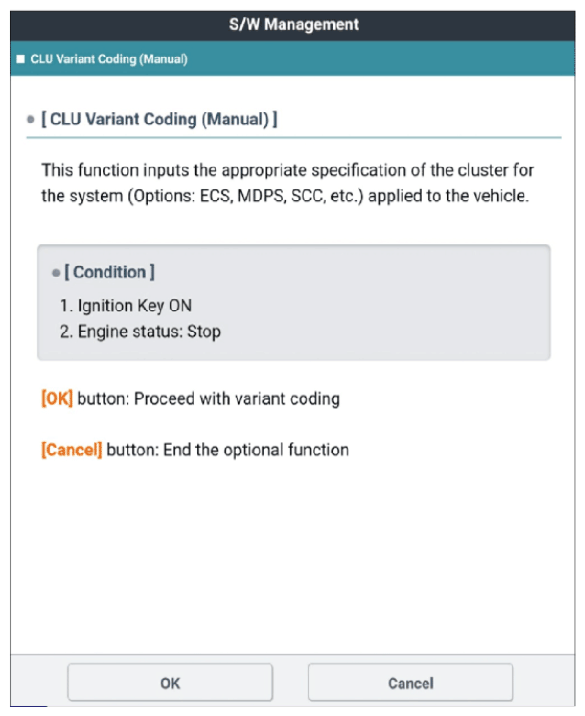

G12852883Courtesy of KIA MOTORS AMERICA, INC.

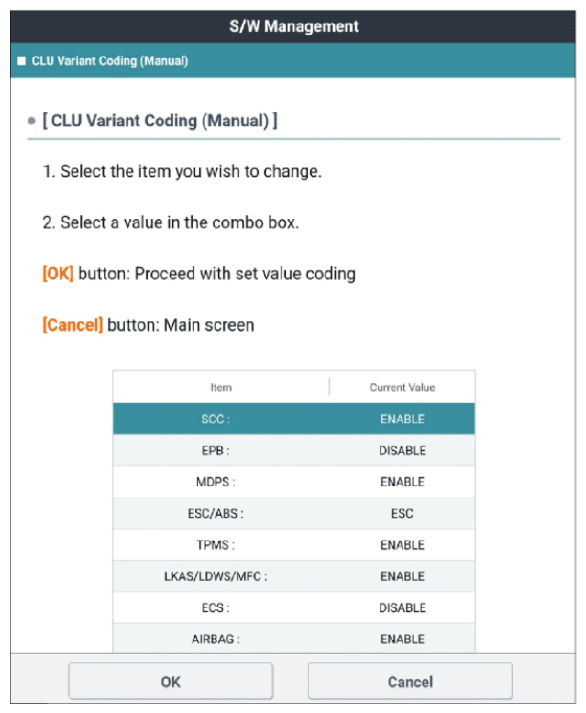

G12852884Courtesy of KIA MOTORS AMERICA, INC.

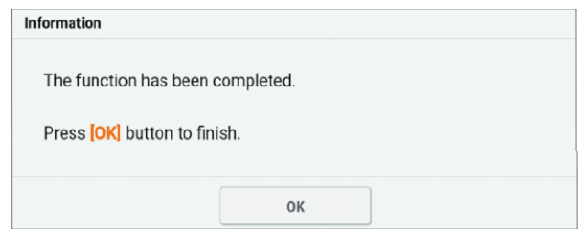

G12852885Courtesy of KIA MOTORS AMERICA, INC.
