Repair Procedures: Removal

Information

When replacing the LKA switch, check that the symbol mark in the cluster operates normally by pressing the ON/OFF switch.

Courtesy of KIA MOTORS AMERICA, INC.

1. Disconnect the negative (-) battery terminal.

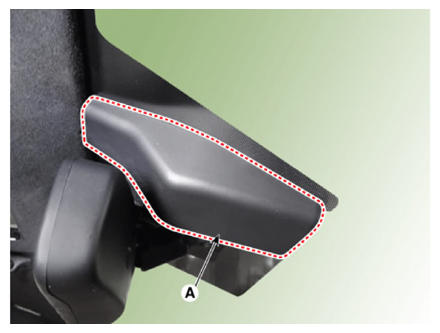

2. Remove the front camera unit cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

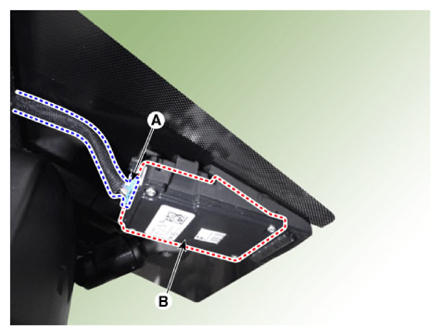

3. Remove the front camera unit (B) after disconnecting the connector (A)

   Courtesy of KIA MOTORS AMERICA, INC.
