Repair Procedures: Inspection: Notes

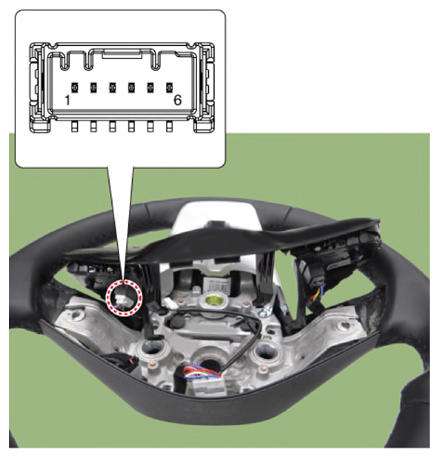

- Check for resistance between terminals in each switch position (LH).
Courtesy of KIA MOTORS AMERICA, INC.
[Audio + Bluetooth + Voice]

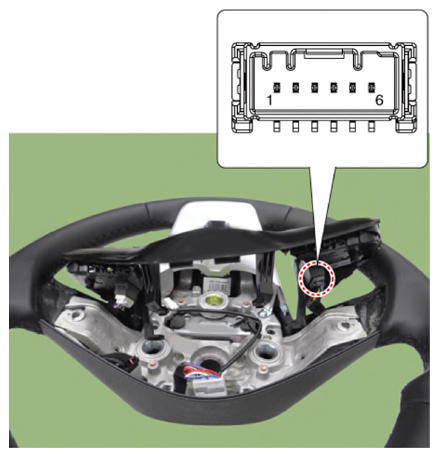

Switch Connector terminal Resistance (±3%) SEEK Up 1-6 430 Ω SEEK Down 1.11 kΩ MODE 2.11 kΩ MUTE 3.11 kΩ Volume (+) 4.61 kΩ Volume (-) 6.81 kΩ Voice 10.71 kΩ END 18.91 kΩ SEND 40.91 kΩ - Check for resistance between terminals in each switch position (RH).
