Removal and Installation

Disconnect the battery negative terminal.

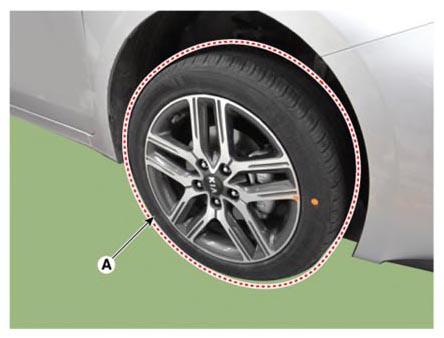

Remove the front wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire.

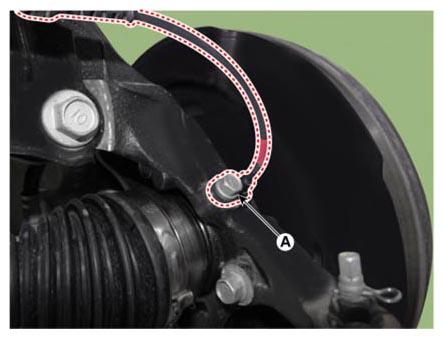

Disconnect the front wheel speed sensor (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

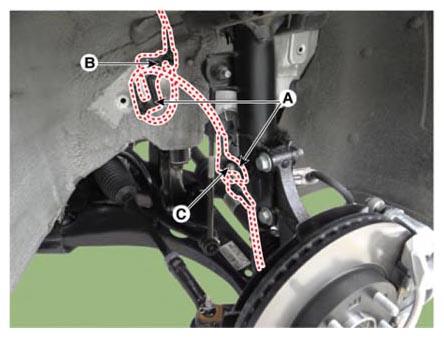

Disconnect the front wheel speed sensor brackets (A) by loosening the bolts.
Tightening torque:

Bolt (B) : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Bolt (C) : 8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
(Refer to Body - " FRONT WHEEL GUARD ")

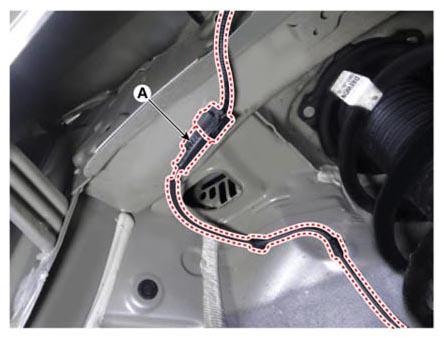

Disconnect the connector (A) and then remove the front wheel speed sensor.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
