Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Variant Coding.
  2. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Variant Coding" in "Vehicle S/W management" with KDS.
 Fig.1 to 6

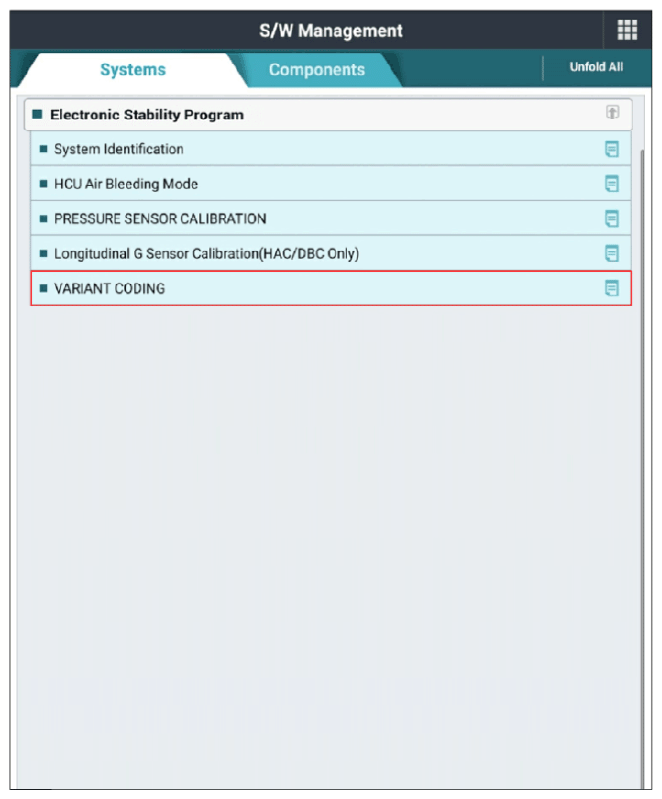

G12852780Courtesy of KIA MOTORS AMERICA, INC.

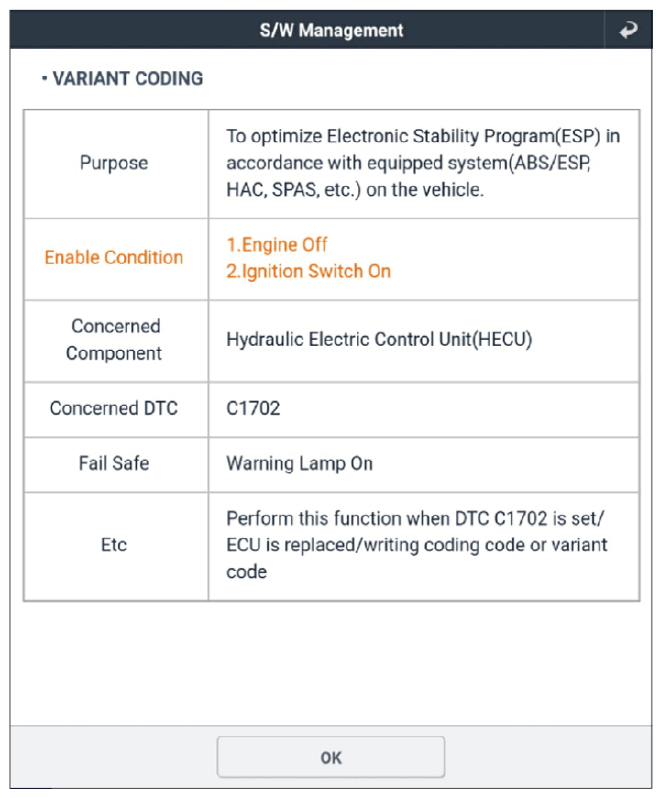

G12852781Courtesy of KIA MOTORS AMERICA, INC.

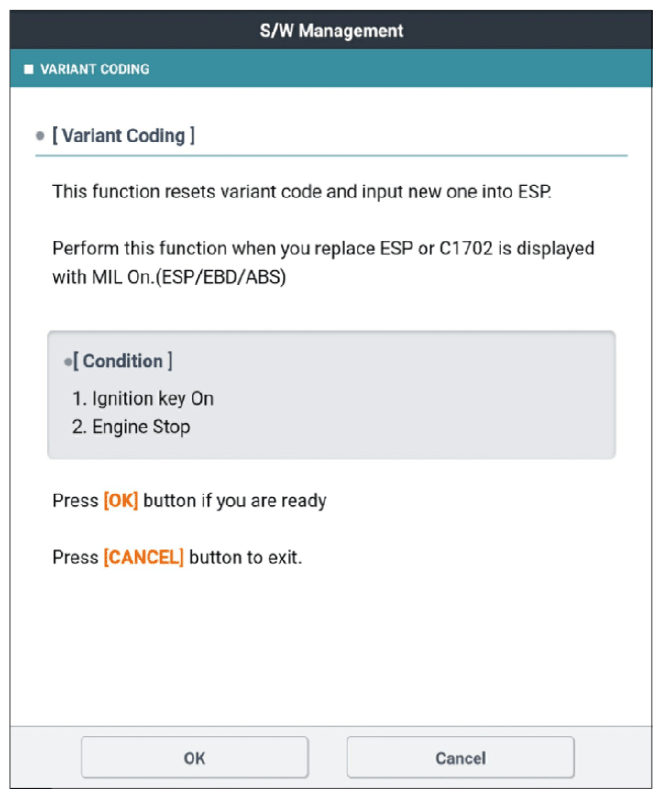

G12852782Courtesy of KIA MOTORS AMERICA, INC.

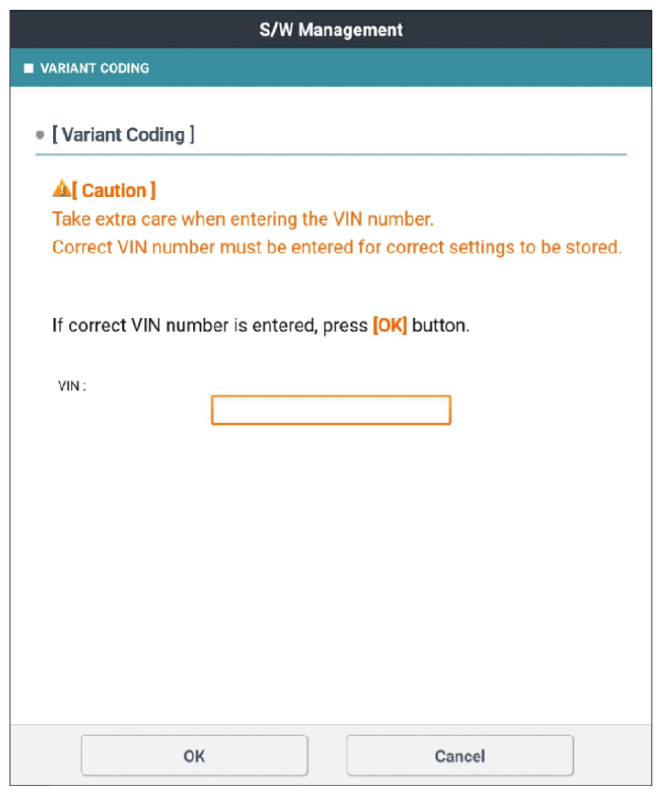

G12852783Courtesy of KIA MOTORS AMERICA, INC.

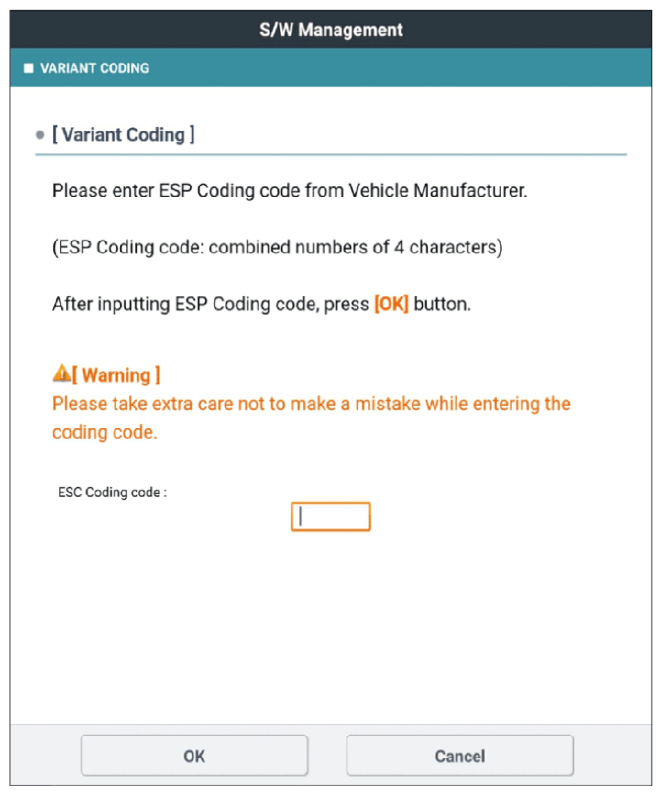

G12852784Courtesy of KIA MOTORS AMERICA, INC.

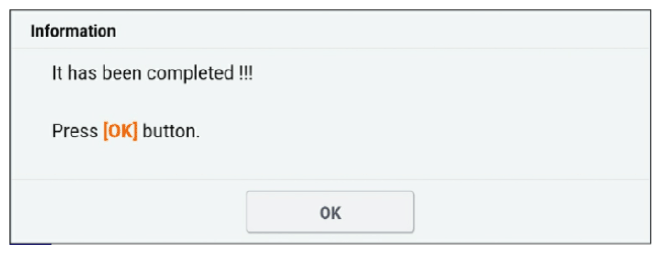

G12852785Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Longitudinal G Sensor Calibration (HAC/DBC Only).
  2. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Longitudinal G Sensor Calibration (HAC/DBC Only)" in "Vehicle S/W management" with KDS.
 Fig.1 to 5
G12852786Courtesy of KIA MOTORS AMERICA, INC.

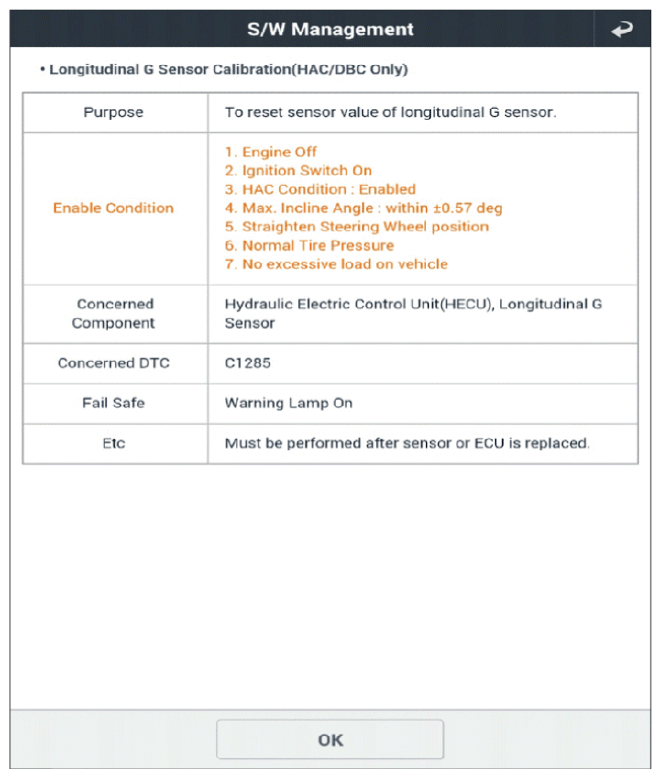

G12852787Courtesy of KIA MOTORS AMERICA, INC.

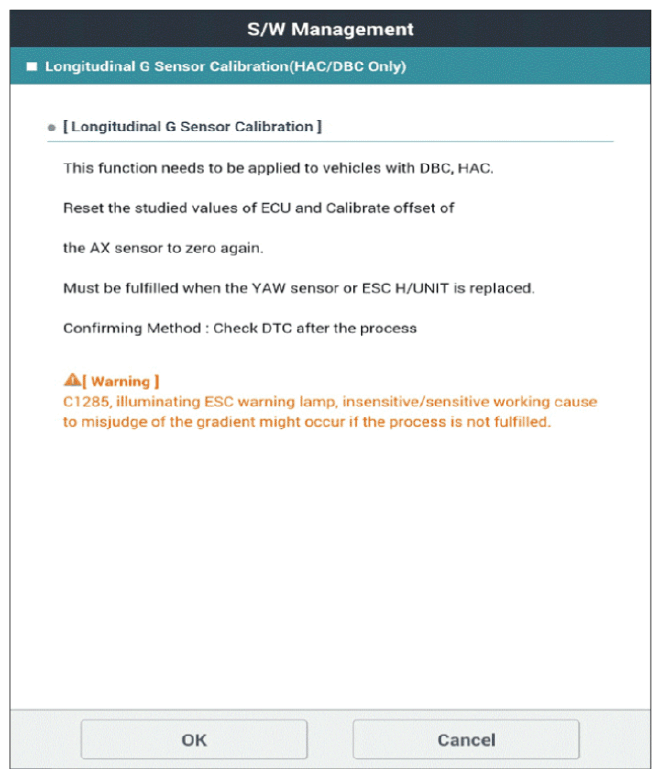

G12852788Courtesy of KIA MOTORS AMERICA, INC.

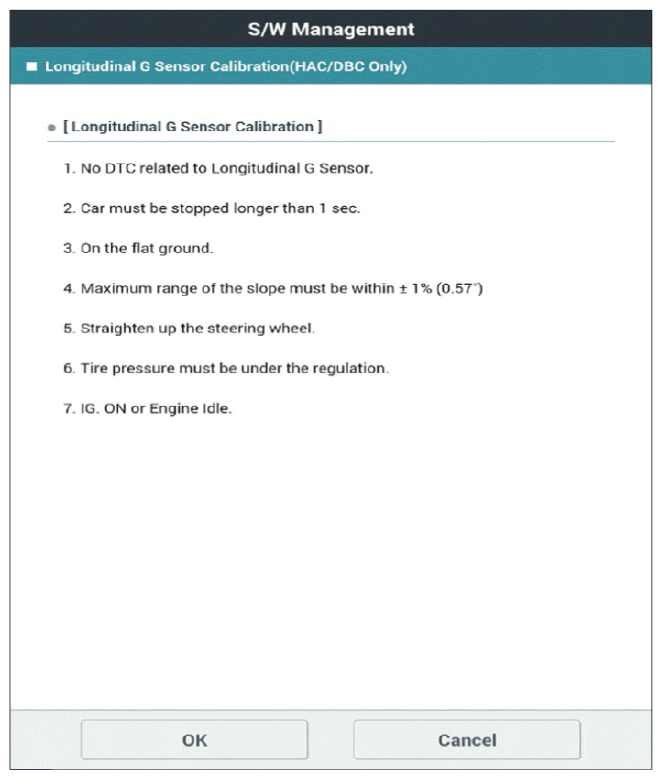

G12852789Courtesy of KIA MOTORS AMERICA, INC.

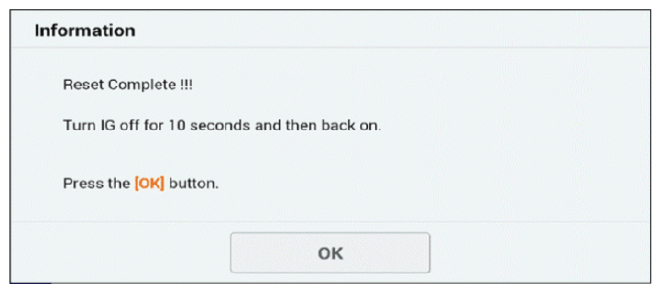

G12852790Courtesy of KIA MOTORS AMERICA, INC.
