Repair Procedures: Replacement

Information

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Remove the front seat assembly.

   (Refer to Front Seat - " FRONT SEAT ASSEMBLY  ")

3. Remove the crash pad lower panel.

   (Refer to Crash Pad - " CRASH PAD LOWER PANEL  ")

4. Remove the cluster fascia panel.

   (Refer to Crash Pad - " CLUSTER FASCIA PANEL  ")

5. Remove the steering column shroud lower panel.

   (Refer to Crash Pad - " STEERING COLUMN SHROUD PANEL  ")

6. Remove the steering wheel.

   (Refer to Steering System - " STEERING WHEEL  ")

7. Remove the instrument cluster.

   (Refer to Body Electrical System - " INSTRUMENT CLUSTER  ")

8. Remove the audio and AVN head unit.

   (Refer to Body Electrical System - " AUDIO/AVN HEAD UNIT  ")

9. Remove the front pillar trim.

   (Refer to Interior Trim - " FRONT PILLAR TRIM  ")

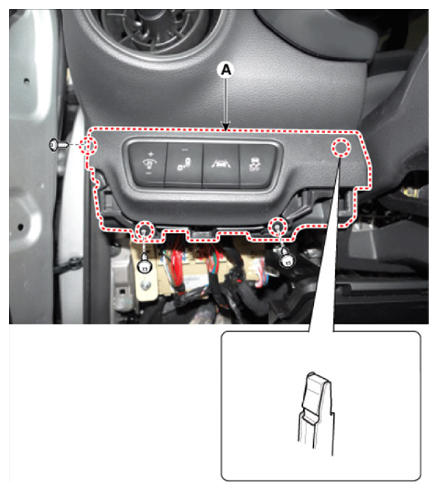

10. Loosen the mounting screws remove the crash pad side switch (A).

    Courtesy of KIA MOTORS AMERICA, INC.

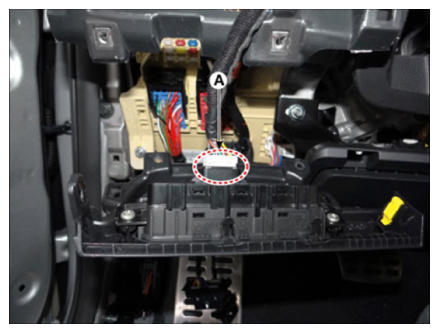

11. Disconnect the crash pad side switch connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

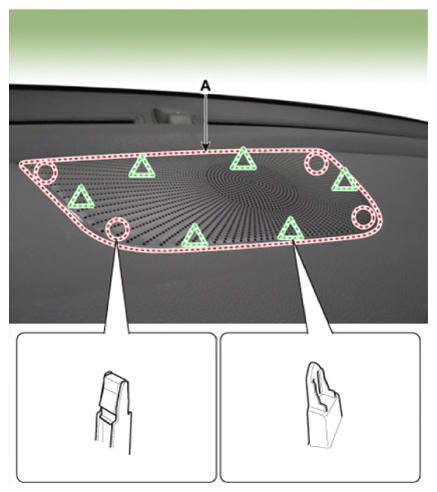

12. Using a screwdriver or remover, remove the center speaker grill (A).

    Courtesy of KIA MOTORS AMERICA, INC.

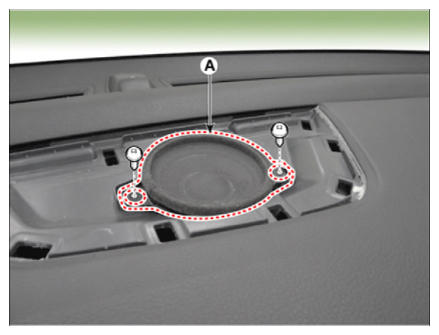

13. Loosen the mounting screws remove the center speaker (A).

    Courtesy of KIA MOTORS AMERICA, INC.

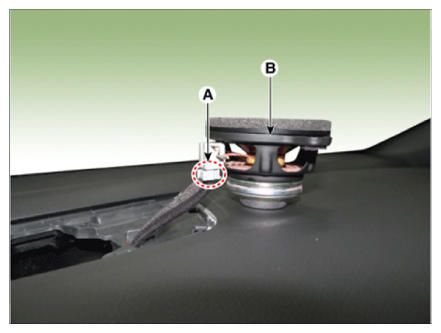

14. Disconnect the connector (A) and then remove the center speaker (B).

    Courtesy of KIA MOTORS AMERICA, INC.

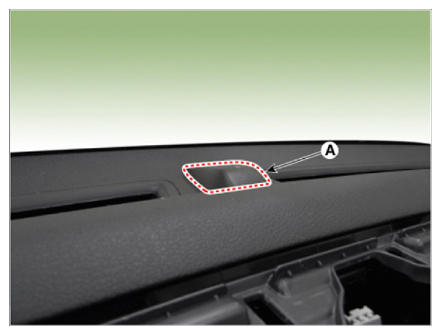

15. Using a screwdriver or remover, remove the security lamp (A).

    Courtesy of KIA MOTORS AMERICA, INC.

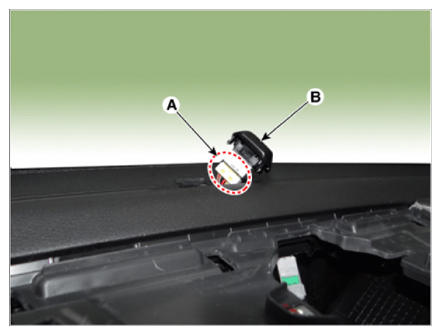

16. Disconnect the connector (A) and then remove the security lamp (B).

    Courtesy of KIA MOTORS AMERICA, INC.

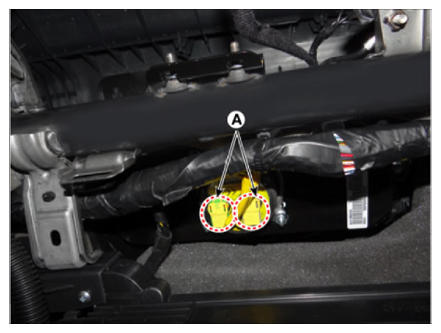

17. Disconnect the passenger's airbag connectors (A).

    Courtesy of KIA MOTORS AMERICA, INC.

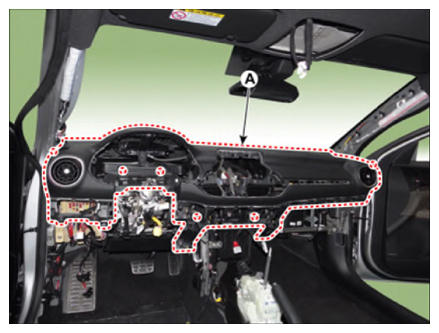

18. Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).

    Courtesy of KIA MOTORS AMERICA, INC.

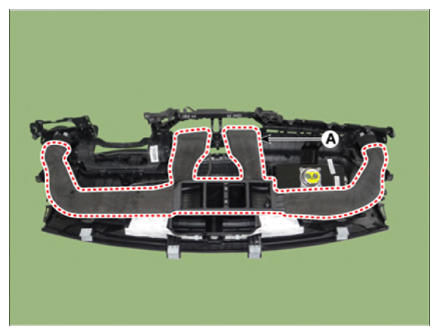

19. Loosen the mounting screws remove the heater & air vent duct connector (A).

    Courtesy of KIA MOTORS AMERICA, INC.

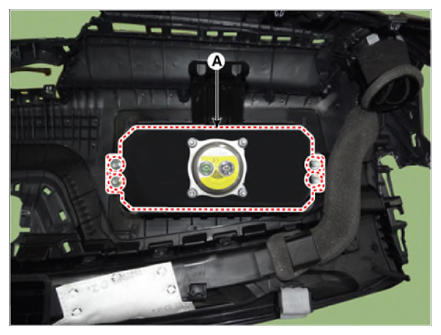

20. Loosen the mounting bolts and remove the passenger's airbag (A).

    Courtesy of KIA MOTORS AMERICA, INC.

21. To install, reverse the removal procedure.

Information

• Make sure the crash pad fits onto the guide pins correctly.
• Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
• Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
• Make sure that each of the assembly components operates properly.
• Replace any damaged clips (or pin - type retainers).
