Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to protect your hands.
NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove both sides of the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove both sides of the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  4. Remove the instrument cluster.

    (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

  5. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  6. Remove the glove box housing.

    (Refer to Crash Pad - "GLOVE BOX HOUSING ")

  7. Remove the audio unit or AVN head unit.

    (Refer to Body Electrical System - "AUDIO UNIT ")

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  8. Remove the crash pad center lower panel.

    (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

  9. Remove the steering column shroud lower panel.

    (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

  10. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  11. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  12. Using a screwdriver or remover, remove the crash pad lower switch panel (A).
    G11934010Courtesy of KIA MOTORS AMERICA, INC.
  13. Disconnect the crash pad lower switch connector (A).
    G11934011Courtesy of KIA MOTORS AMERICA, INC.

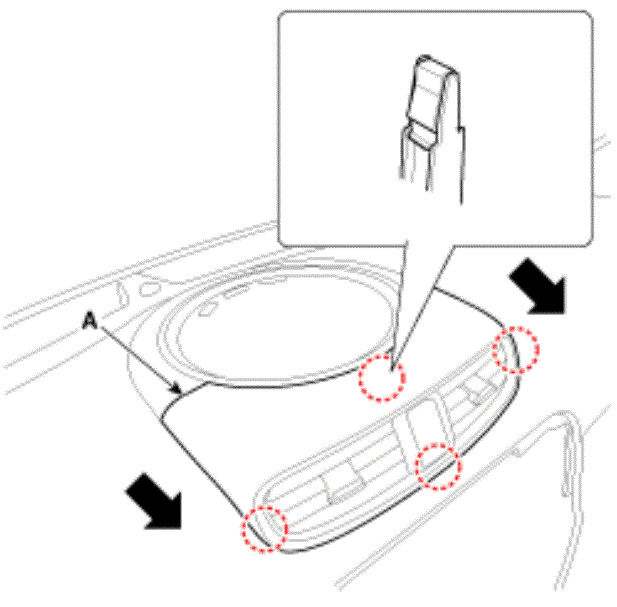

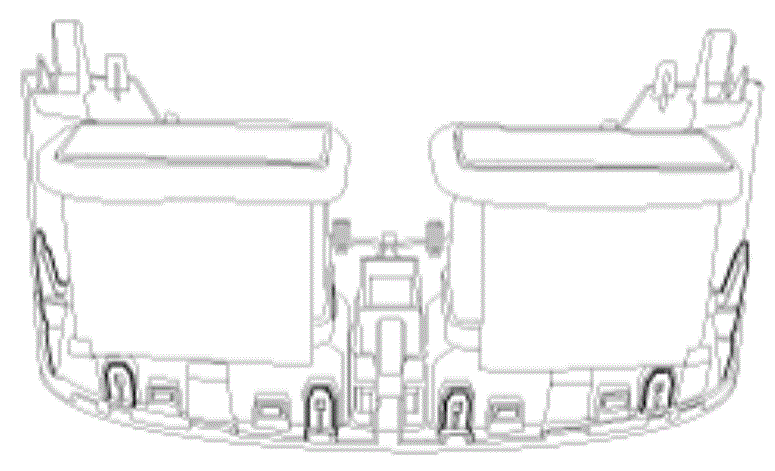

  14. Using a screwdriver or remover, remove the crash pad center air vent panel (A).
    G12820124Courtesy of KIA MOTORS AMERICA, INC.
    G11934013Courtesy of KIA MOTORS AMERICA, INC.
    G12820126Courtesy of KIA MOTORS AMERICA, INC.
  15. Disconnect the hazard switch connector (A).
    G11934015Courtesy of KIA MOTORS AMERICA, INC.
  16. After loosening the mounting screws, remove the charging notification lamp assembly using a screw driver.
    G11934016Courtesy of KIA MOTORS AMERICA, INC.

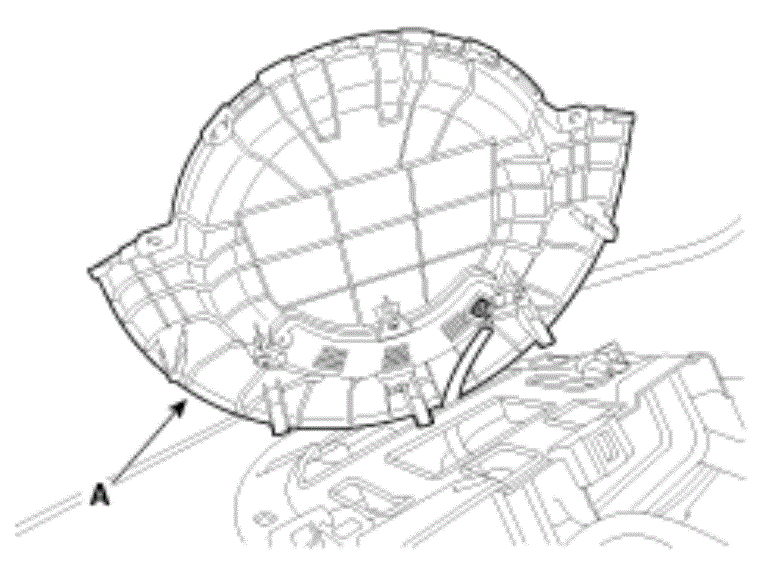

  17. Disconnect the charging notification lamp connector (A).
    G12820129Courtesy of KIA MOTORS AMERICA, INC.
  18. Remove the twitter speaker.
    1. Insert the flat-tip screwdriver (C) to the hole (B) and remove the twitter speaker grill (A) by raising it with the screwdriver.
      G11934018Courtesy of KIA MOTORS AMERICA, INC.

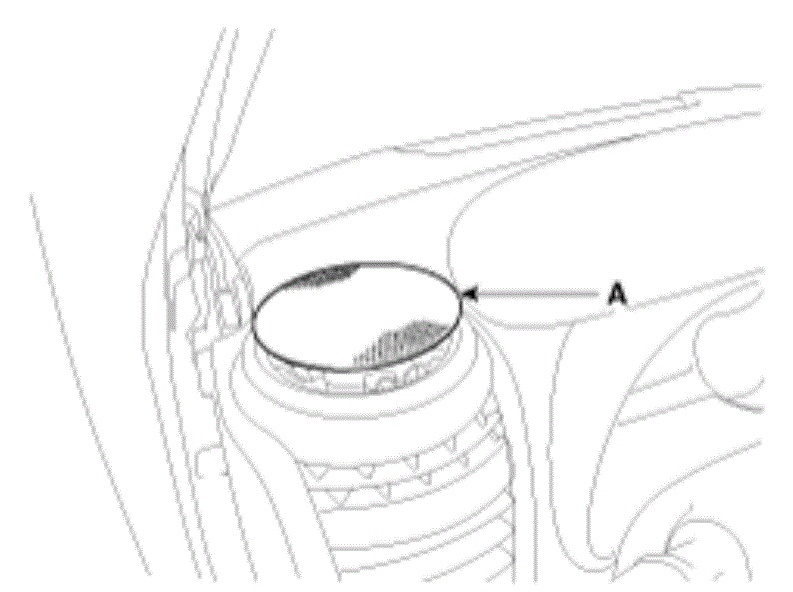

    2. Remove the twitter speaker grill (A).
      G12820131Courtesy of KIA MOTORS AMERICA, INC.
      G11934020Courtesy of KIA MOTORS AMERICA, INC.
    3. After loosening the mounting screws, remove the twitter speaker (A).
      G11934021Courtesy of KIA MOTORS AMERICA, INC.
    4. Disconnect the twitter speaker connector (A).
      G11934022Courtesy of KIA MOTORS AMERICA, INC.
    5. After loosening the mounting screws, remove the crash pad side air vent panel (A) using a screw driver.
      G11934023Courtesy of KIA MOTORS AMERICA, INC.
  19. Using a screwdriver or remover, remove the photo sensor (A).
  20. Disconnect the photo sensor connector (B).
    G11934024Courtesy of KIA MOTORS AMERICA, INC.
  21. Loosen the mounting bolts (A).
  22. Disconnect the passenger's airbag connector (B).
    G12820137Courtesy of KIA MOTORS AMERICA, INC.

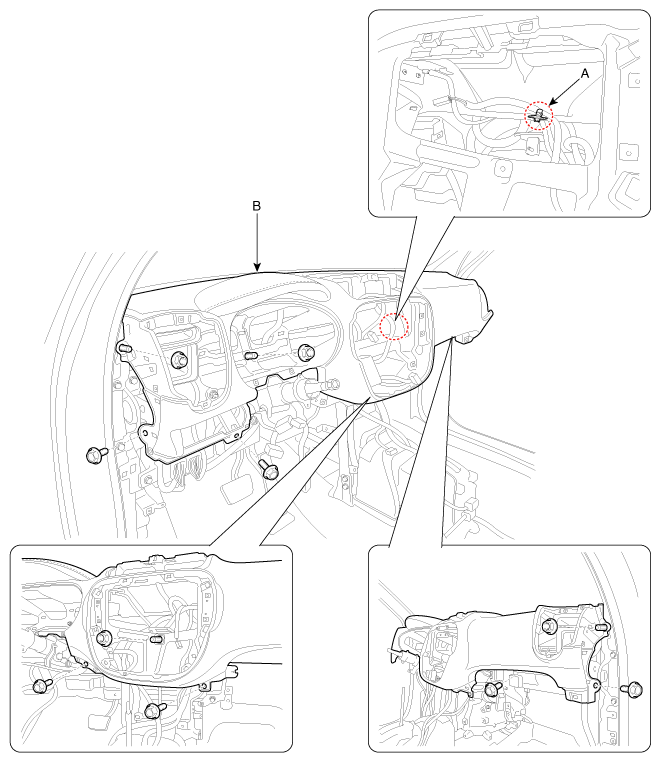

  23. Remove the center fascia panel side's mounting clip (A).
  24. After loosening the mounting bolts and nuts, remove the main crash pad assembly (B).
    G11934026Courtesy of KIA MOTORS AMERICA, INC.

    Information

    • When installing main crash pad, be sure to pull out the twitter speaker connector wiring (A) through the hole on the side air vent panel.
    G11934027Courtesy of KIA MOTORS AMERICA, INC.

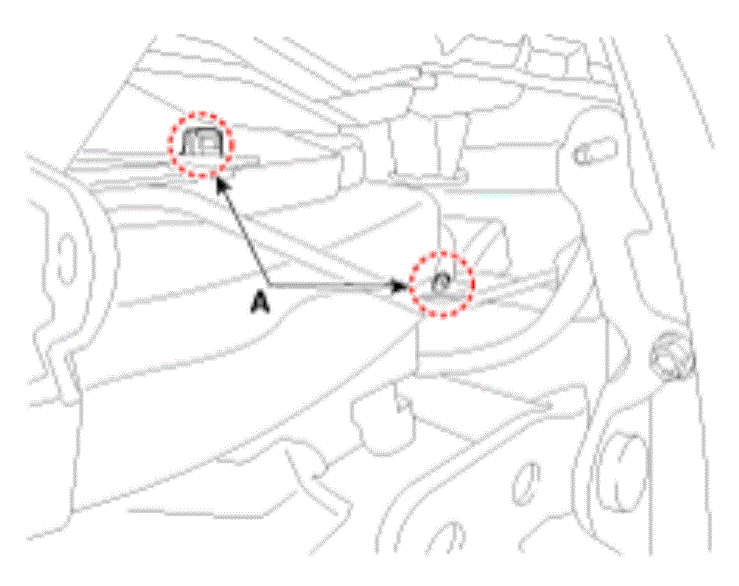

  25. Right before removing the main crash pad, slightly lift the main crash pad and remove the twitter speaker connector mounting clips (A) located at both ends.

    [LH]

    G11934028Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12820141Courtesy of KIA MOTORS AMERICA, INC.
  26. Install in the reverse order of removal.

    Information

    • Make sure that the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure that the crash pad wire harnesses are not pinched.
    • Make sure that the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, and then enter the customer's radio station presets.
