Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing and installing the trunk lid, an assistant is necessary.
Be careful not to damage the trunk lid and body surface.

Remove the trunk lid trim.
(Refer to Trunk Lid - "TRUNK LID TRIM ")

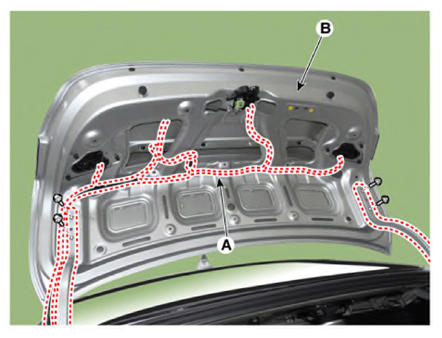

Disconnect the connectors and trunk lid wiring harness (A).
After loosening the mounting bolts, remove the trunk lid assembly (B).
Tightening torque:

8.8 - 11.8 N.m (0.9 - 1.2 Kgf.m, 6.5 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the trunk lid locks/unlocks and opens/closes properly.
- Adjust the trunk lid as necessary.
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
