Repair Procedures: Replacement

1. Remove the front door window glass.

   (Refer to "FRONT DOOR WINDOW GLASS ")

2. Remove the front door outside handle.

   (Refer to "FRONT DOOR OUTSIDE HANDLE ")

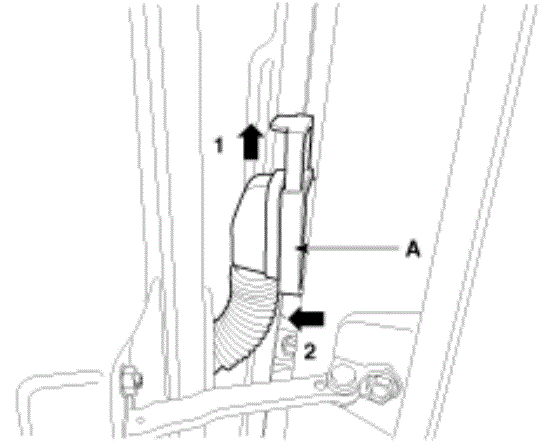

3. Disconnect the front door main connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

4. Loosen the front door outside handle base mounting bolt (A).

   Courtesy of KIA MOTORS AMERICA, INC.

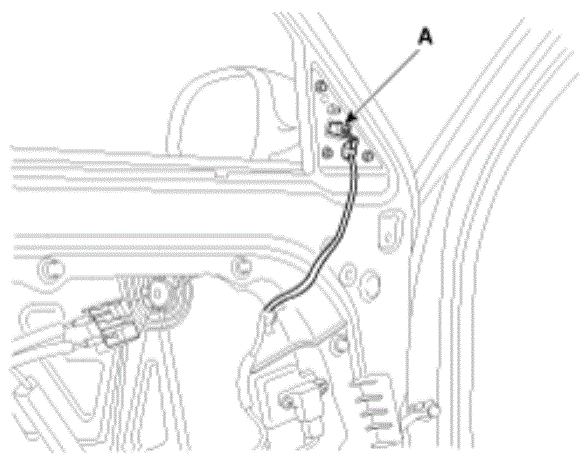

5. Disconnect the outside rear view mirror connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

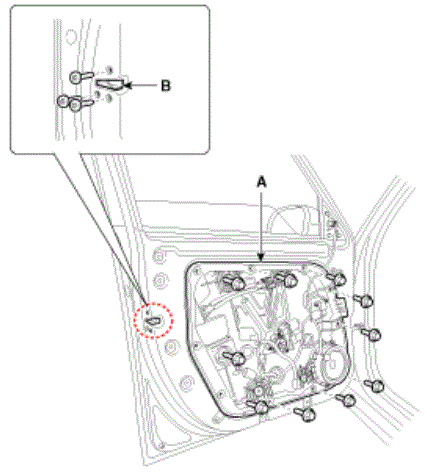

6. Loosen the front door latch (B) mounting screws.
7. After loosening the mounting bolts, remove the front door module (A).

   Tightening torque:

   Bolt: 7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

   Screw: 7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft)

   Courtesy of KIA MOTORS AMERICA, INC.

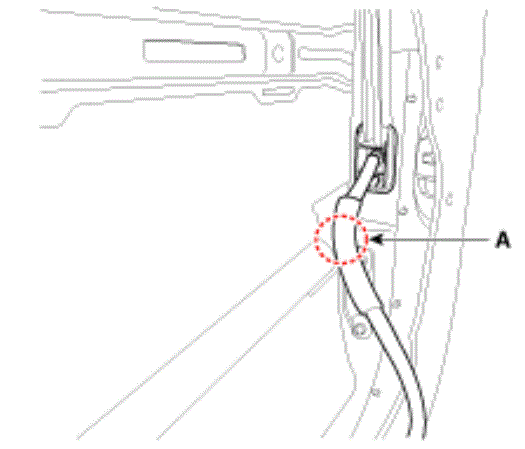

8. Remove the front door main connector mounting clips (A).

   Courtesy of KIA MOTORS AMERICA, INC.

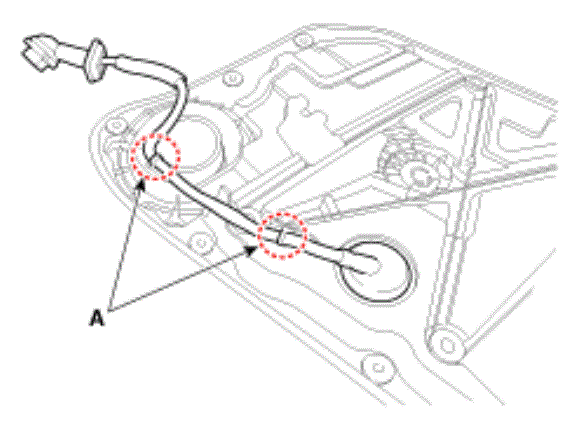

9. Remove the front door module wiring harness mounting clips (A).

   Courtesy of KIA MOTORS AMERICA, INC.

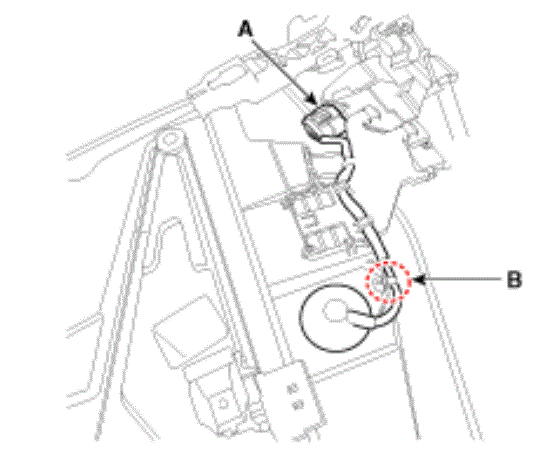

10. Disconnect the front door latch connector (A) and then remove the mounting clip (B).

    Courtesy of KIA MOTORS AMERICA, INC.

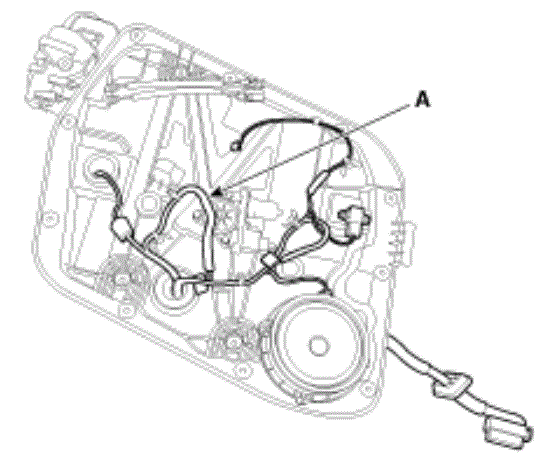

11. Disconnect the connectors and front door module wiring harness (A).

    Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the front door latch assembly.

    (Refer to "FRONT DOOR LATCH ")

13. Remove the front speaker.

    (Refer to "SPEAKERS ")

14. Remove the front power window motor.

    (Refer to "POWER WINDOW MOTOR ")

15. Install in the reverse order of removal.

Information

• Apply sufficient grease on all rolling friction parts and springs.
• Make sure that connectors are connected properly and each rod is connected securely.
• Make sure that the door locks/unlocks and opens/closes properly.
