Dimensions Projected
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

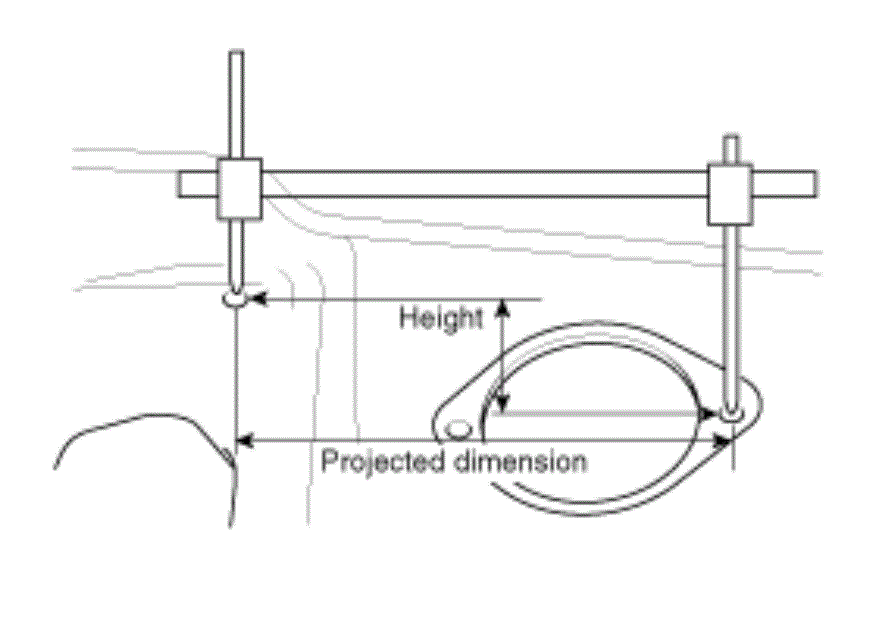

- These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for body alterations.
- If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the height difference between two surfaces.
