Monitor KDS Data

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Ignition "OFF", connect KDS.
Ignition "ON" (Power Button LED "Red"), select "Current Data" mode.
Monitor the "Read Class Status" parameter on the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

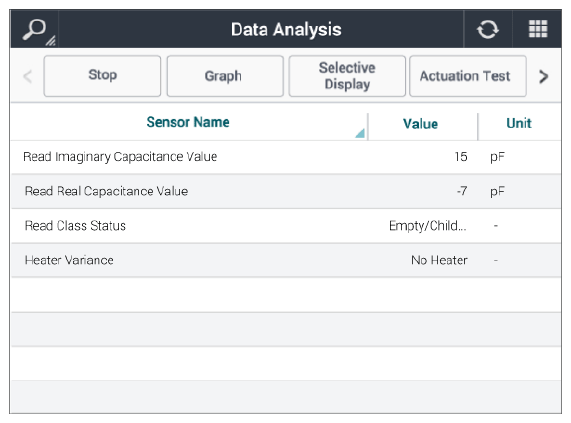

Figure) Passenger Unoccupied

Courtesy of KIA MOTORS AMERICA, INC.

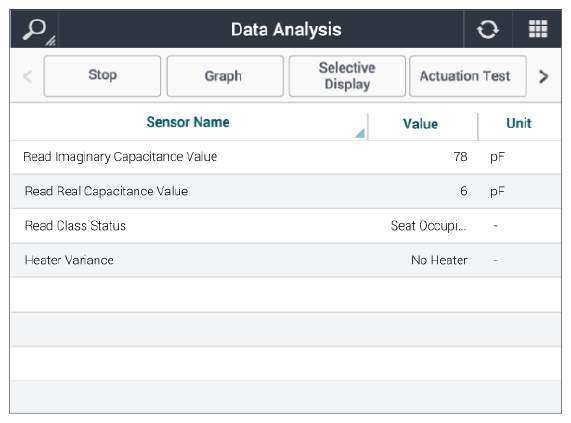

Figure) Passenger Occupied
Has a problem been found?
YES
- Go to "BODY SENSOR RESET " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
