Repair Procedures: Inspection

  1. Check the strut bearing for wear and damage.
  2. Check the spring upper and lower pad for damage and deterioration.

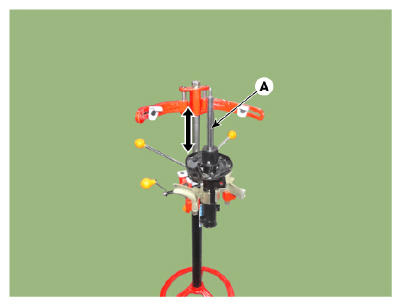

  3. Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
    G12833000Courtesy of KIA MOTORS AMERICA, INC.
