Circuit Diagram
[Audio + Bluetooth + Voice]

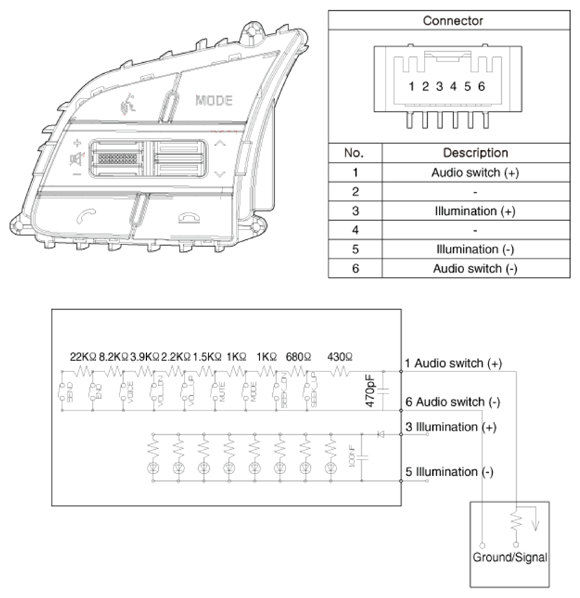

Fig 1: Steering Wheel Remote Controller Circuit Diagram (Audio + Bluetooth + Voice)
Courtesy of KIA MOTORS AMERICA, INC.
[Trip + SCC]

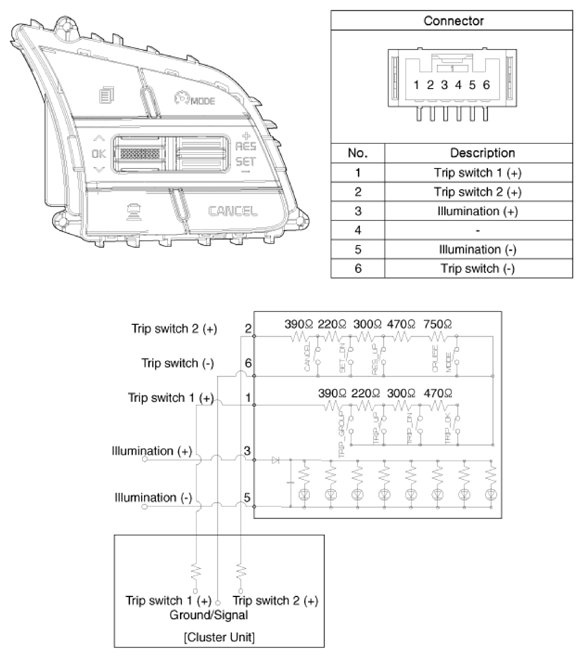

Fig 2: Steering Wheel Remote Controller Circuit Diagram (Trip + SCC)
Courtesy of KIA MOTORS AMERICA, INC.
