Smart Key Code Saving

  1. Connect the VCI II of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

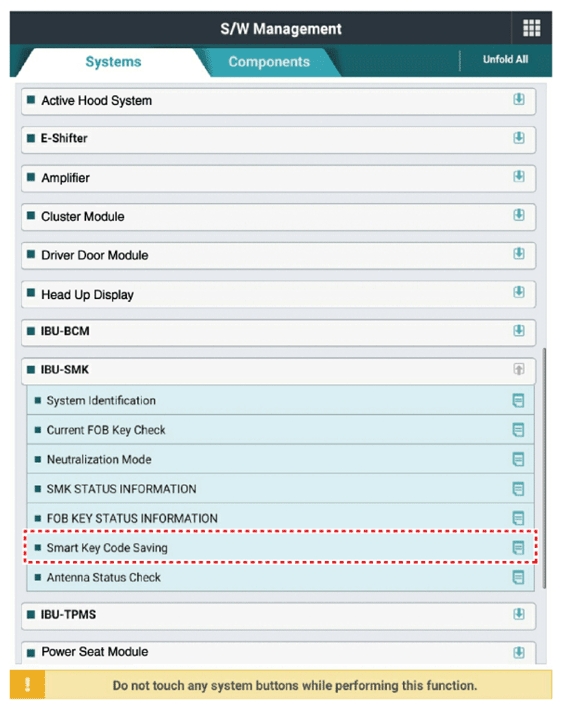

    G12832761Courtesy of KIA MOTORS AMERICA, INC.

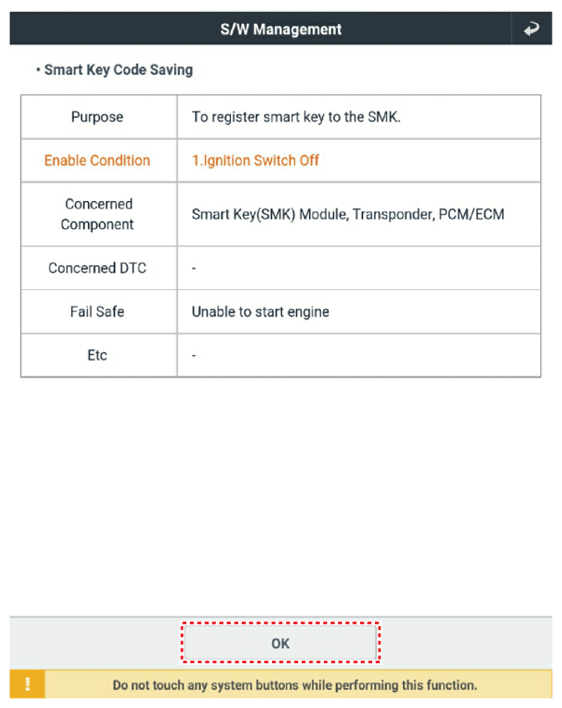

    G12832762Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

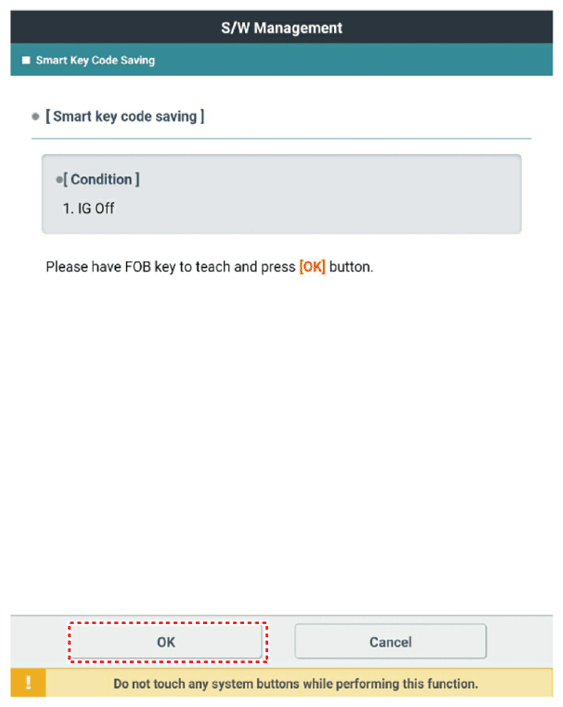

    G12832763Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.
  5. Input the "Pin code" for first key teaching.

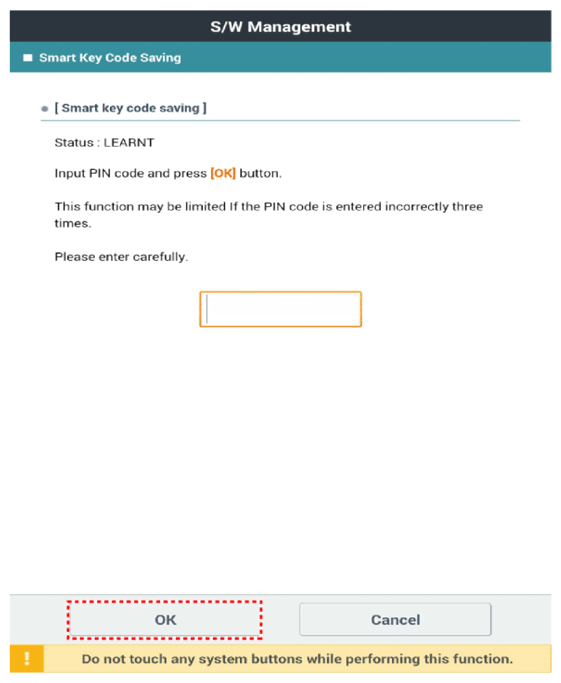

    G12832764Courtesy of KIA MOTORS AMERICA, INC.

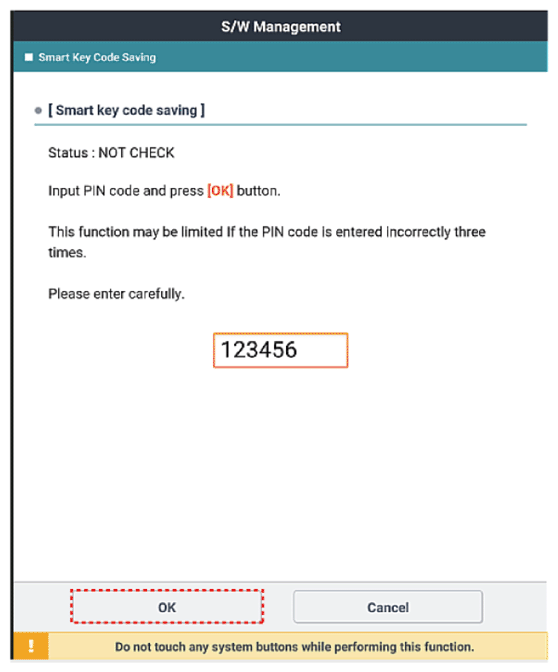

    G12832765Courtesy of KIA MOTORS AMERICA, INC.
    G12832766Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

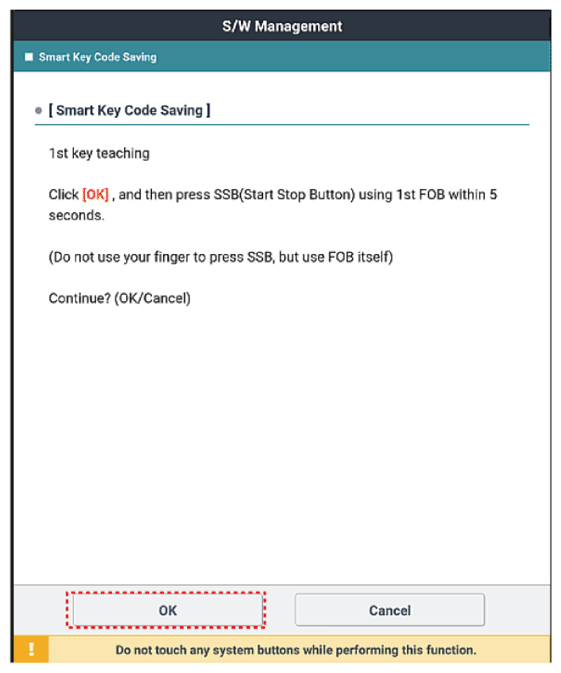

    G12832767Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

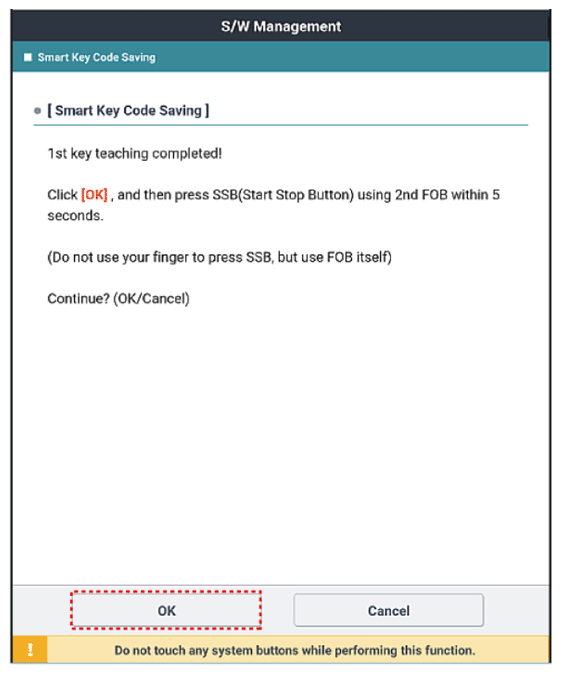

    G12832768Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G12832769Courtesy of KIA MOTORS AMERICA, INC.

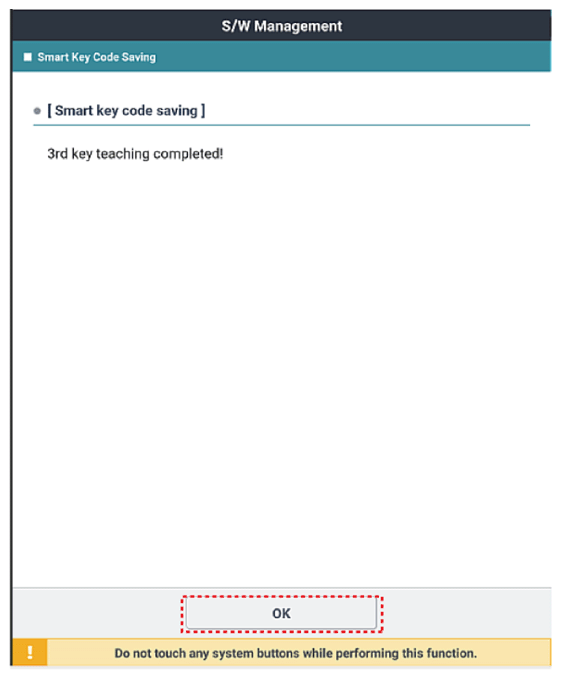

    G12832770Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
    G12832771Courtesy of KIA MOTORS AMERICA, INC.
