Components & Components Location: Components

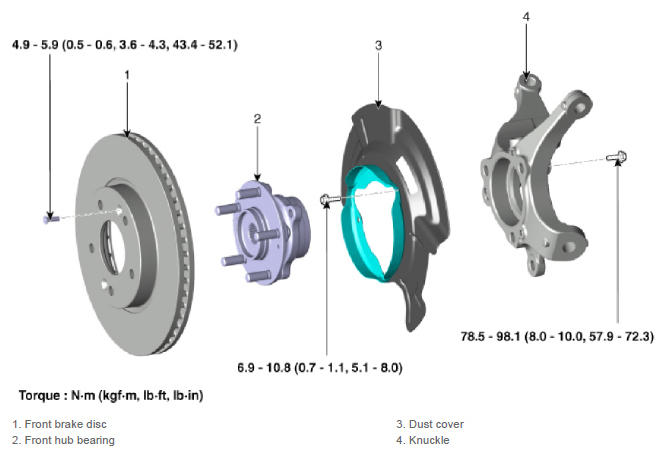

Fig 1: Front Hub/Knuckle Components Location With Torque Specification
G12830601Courtesy of KIA MOTORS AMERICA, INC.
